Replacing Instrument Housing

Replacing instrument housing

Removing instrument housing





Remove:
- combined instrument panel from dashboard according to Replacing the combined instrument panel Replacing the Combined Instrument Panel.

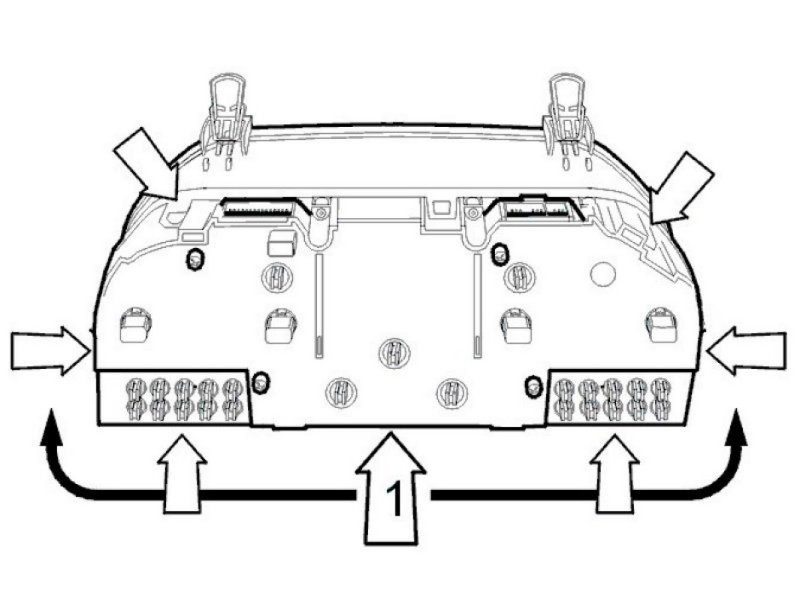

- Turn the combined instrument panel upside down with its reverse facing you.
- Release the middle catch and pull out the instrument housing at the same time releasing the remaining catches in order.

Installing instrument housing





Install:

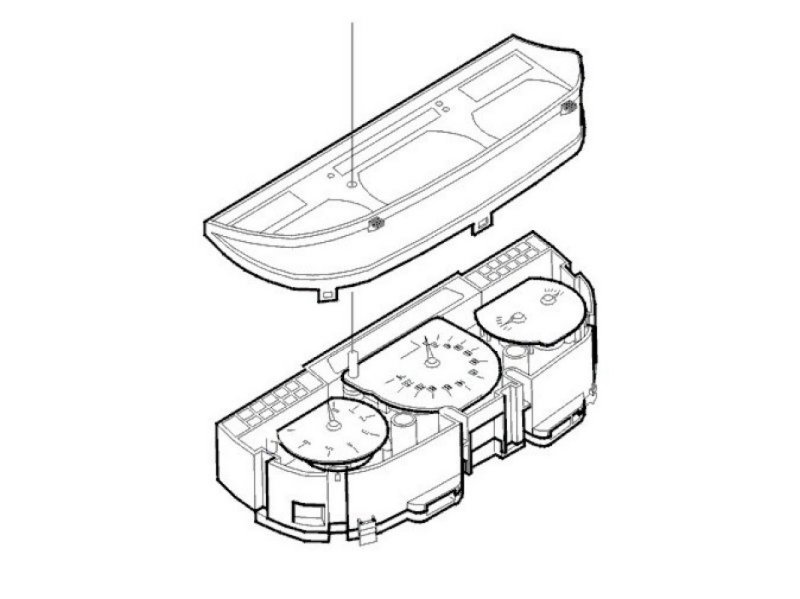

- Place the combined instrument panel on a workbench with the instrument side facing up.
- Position the instrument housing on the combined instrument panel and press into place.
- combined instrument panel from dashboard in reverse order according to Replacing the combined instrument panel Replacing the Combined Instrument Panel.
