Replacing Tach, Speedometer, Temp & Fuel Gauge


DDF1 Removing Tachometer, Temperature Gauge, Fuel Gauge and Speedometer:




Remove:
- instrument housing. Replacing Instrument Housing

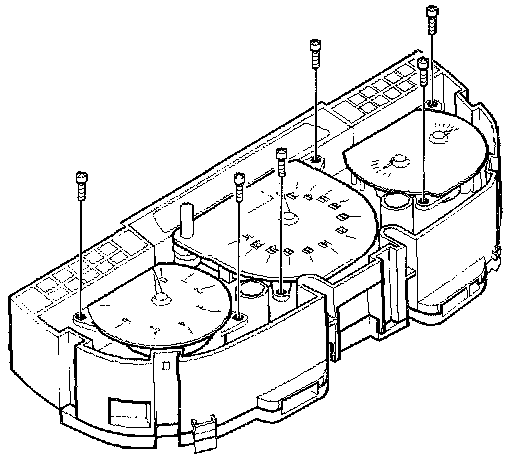

- screws to remove tachometer, temperature gauge, fuel gauge and speedometer.

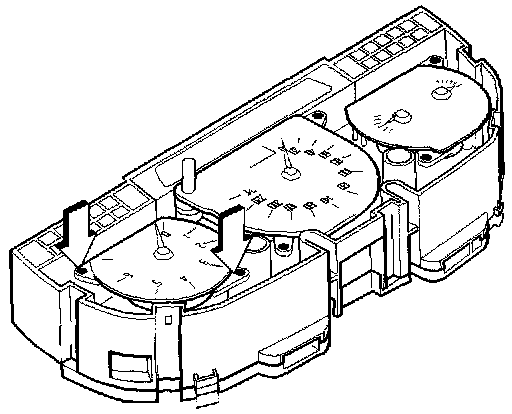

- Carefully pry up and release the tachometer, temperature gauge, fuel gauge and speedometer using a weatherstrip tool.

DDF2 Installing:

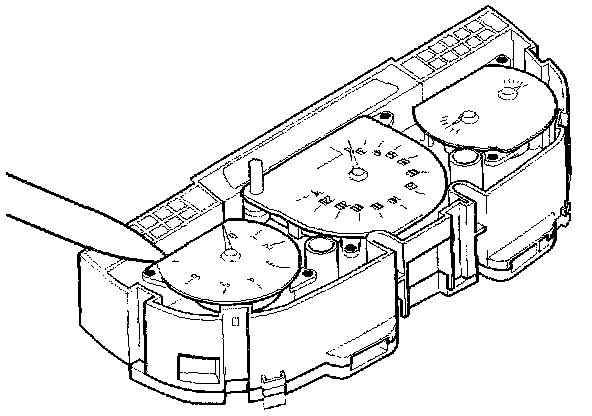

- Position gauges on their guides and press into place.

NOTE: Press the trip odometer/odometer reset button into place.




Install:
- screws.
- instrument housing.
