Replacing Instrument Housing

DDD1 Removing:




- Remove combined instrument panel from dashboard. Replacing the Instrument Cluster

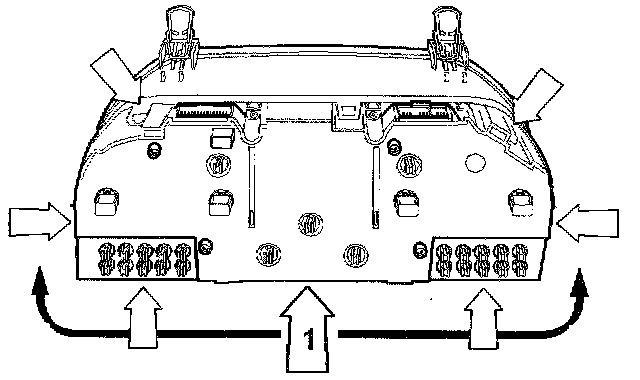

- Turn the combined instrument panel upside down with its reverse facing you.
- Release the middle catch and pull out the instrument housing at the same time releasing the remaining catches in order.

DDD2 Installing:




- Place the combined instrument panel on a workbench with the instrument side facing up.

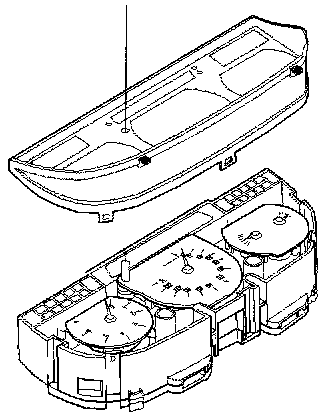

- Position the instrument housing and press it into place.
- Install combined instrument panel from dashboard in reverse order.
