Home >> Volvo >> 2000 >> C70 Convertible L5-2.3L Turbo VIN 53 B5234T3 >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Locations >> Location of Components

Location of Components






Location of components

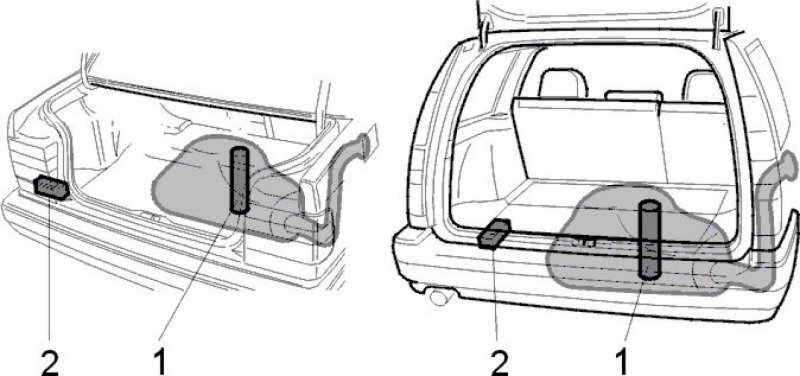

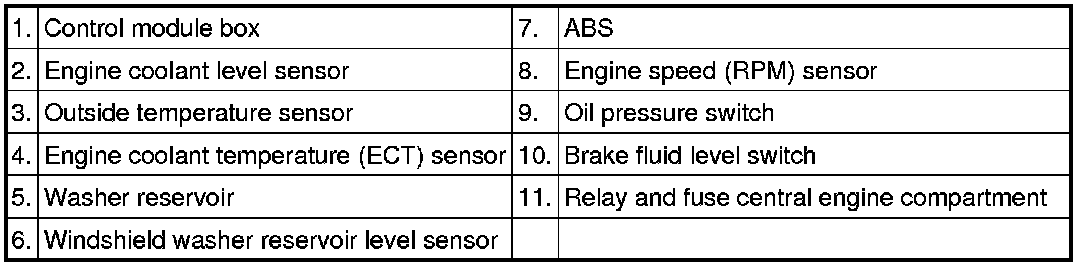

Location of Components (Part 1):

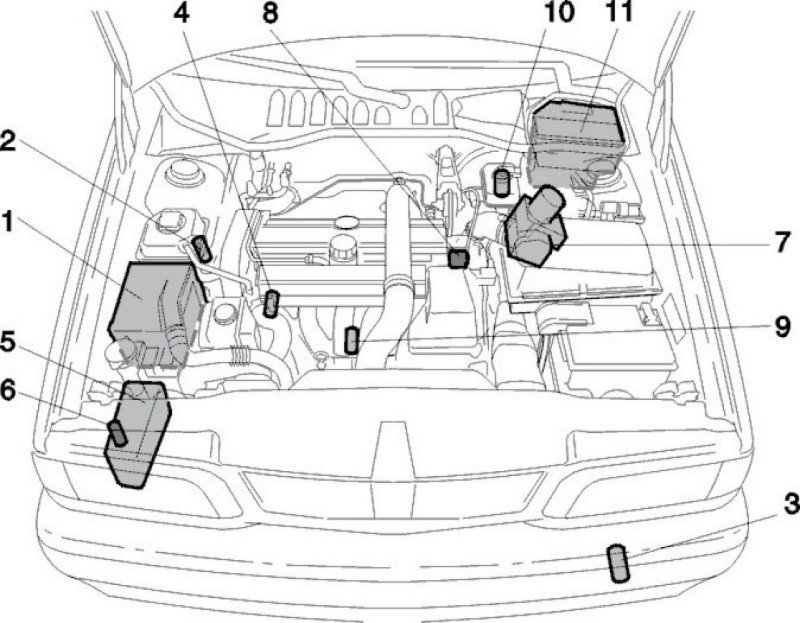

Location of Components (Part 2):






Location of Components (Part 1):





Location of Components (Part 2):
