Checking Ground Terminal

Checking Ground Terminal

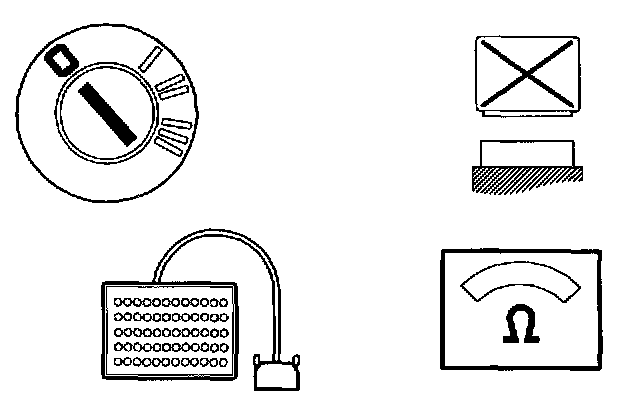

- Ignition off.
- MCC control module disconnected.
- Switch off all equipment that takes power from the battery (courtesy lighting, radio etc).
- Connect the breakout box. Connection of Breakout Box MCC

Connect an ohmmeter between battery negative terminal and control module #B16 (#46) on the breakout box.

The ohmmeter should read approximately 0 [ohm]

OK - Test Complete

Not OK - Checking For an Open-Circuit
