Fault-Tracing Information

Fault-tracing information

Condition




- No diagnostic trouble codes (DTCs) stored in the climate control system or in the engine management system.
- The fault is permanent.

Hint: Certain electrical fault in air conditioning (A/C) system are diagnosed by the engine control module (ECM) and diagnostic trouble codes (DTCs) can be stored there.

Possible source
- Blocked or defective fluid pipe.
- Refrigerant leakage.
- Blocked or defective expansion pipe.
- Blocked evaporator.
- Defective pressure switch (Pressostat).

Hint: The air conditioning (A/C) relay, air conditioning (A/C) compressor, air conditioning (A/C) pressure switch and pressostat (low pressure sensor) are regulated by or electrically connected to the engine control module (ECM). This means that fault-tracing these electrical circuits is not carried out in this test.

Fault symptom[s]

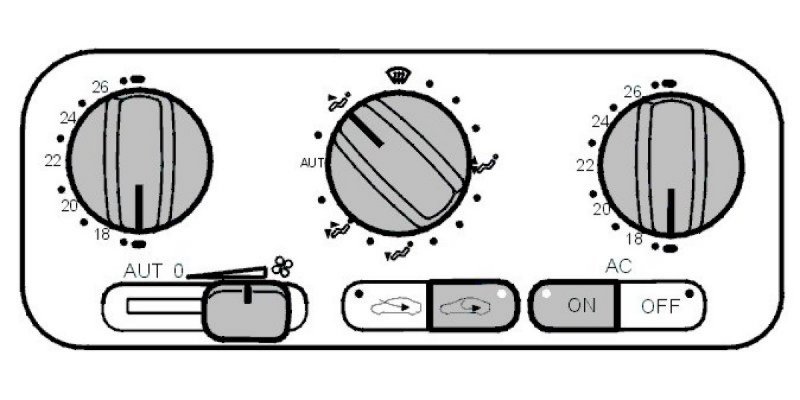

- No cooling from air conditioning (A/C) system.
