Fault-Tracing Information

Fault-tracing information

Condition




- No diagnostic trouble codes (DTCs) stored.
- The fault is permanent.

Possible source

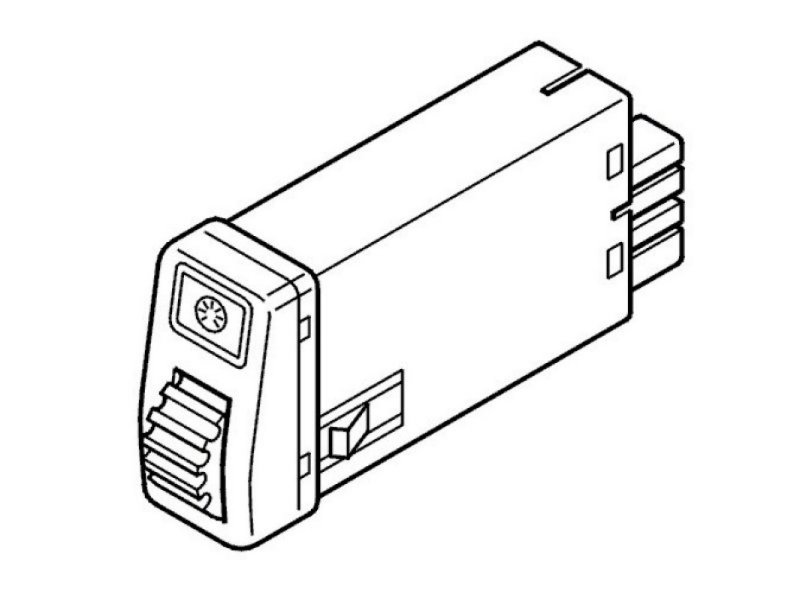

- Open-circuit in cable from rheostat.
- Contact resistance in terminals.
- Defective bulbs in the climate control unit.

Fault symptom[s]
- Lights in the climate unit control panel do not come on.
