Procedures

TTTD1 Removing solar sensor (ECC)







- Ignition off.
- Remove solar sensor by inserting a weatherstrip tool at sensor side and prying it carefully up.
- Lift up sensor and disconnect connector.


TTTD2 Installing solar sensor (ECC)
- In reverse order.


TTTD3 Finishing

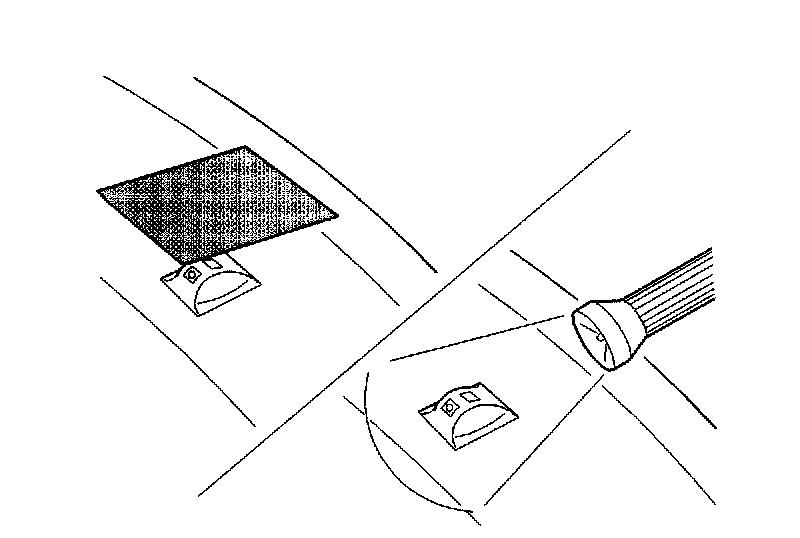

- Check that fault has been corrected by reading off solar intensity. Apply light to the solar sensor so that the values change.
