Removal and Replacement

Replacing evaporator

Replacing evaporator

Removing




- Remove climate control unit assembly according to Removing and installing climate control unit assembly Service and Repair.

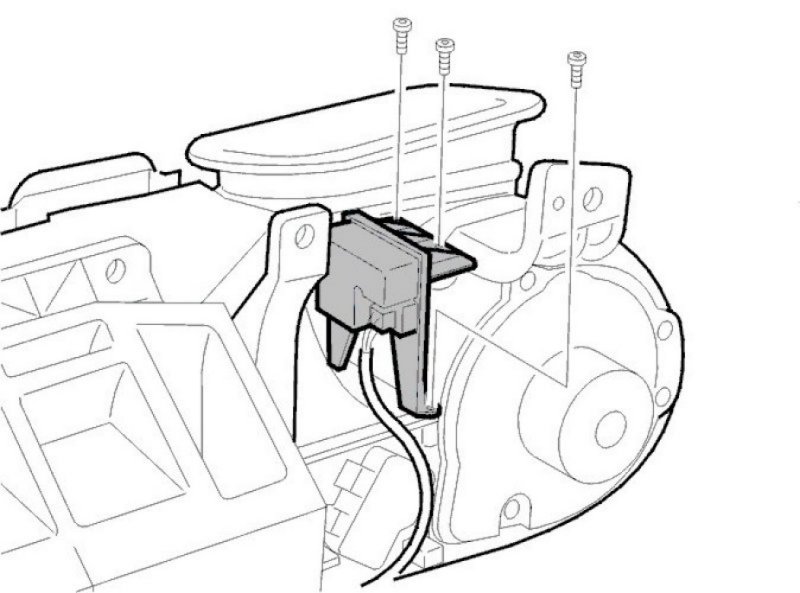

- Remove recirculation damper motor and bracket.

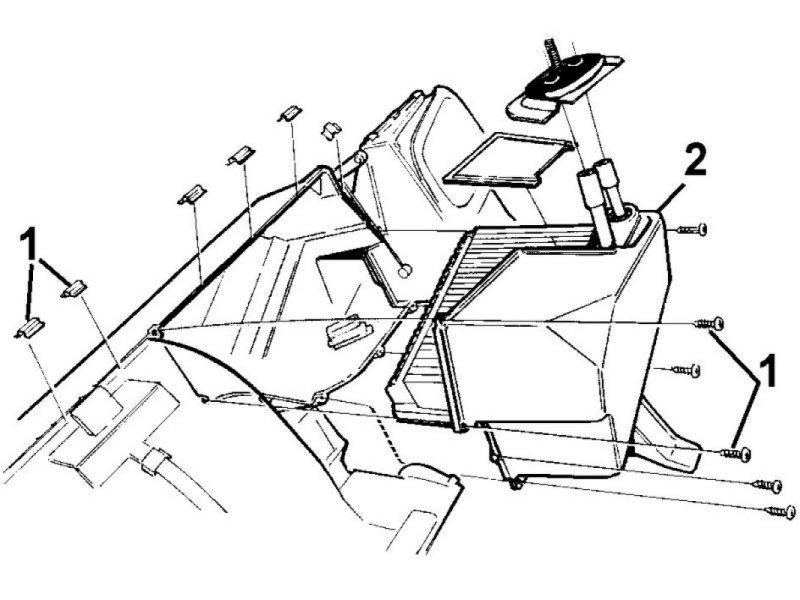

- Remove central electrical unit (1) screws and clips.
- Remove evaporator cover screws and clips.
- Remove evaporator cover (2).
- Remove evaporator.

Installing
- Install evaporator.
- Install evaporator cover (2).
- Install evaporator cover screws and clips.
- Install central electrical unit (1) screws and clips.
- Install recirculation damper motor and bracket.
- Install climate control unit assembly according to Removing and installing climate control unit assembly Service and Repair.
