Standard Heater

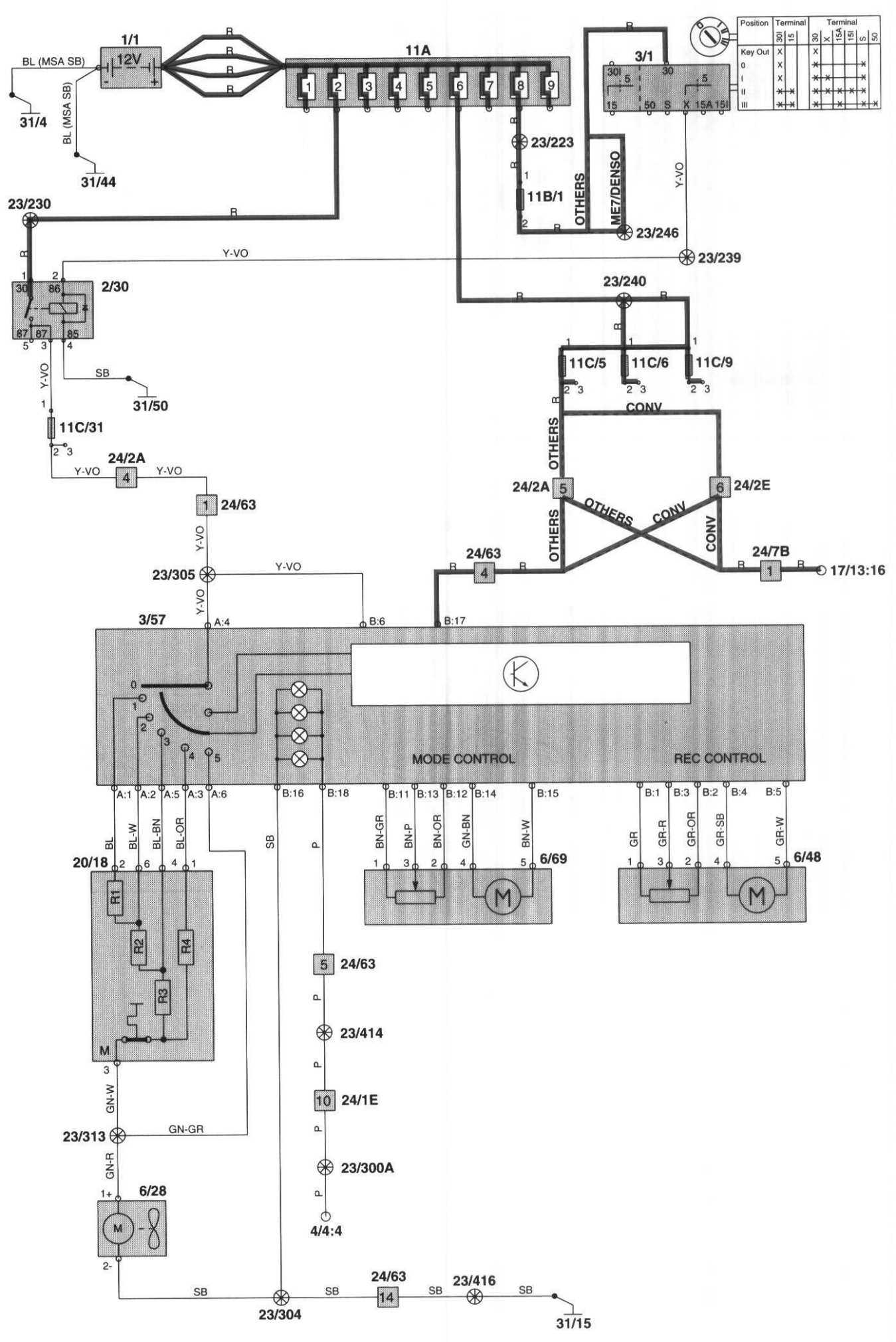

Standard Heater STD - Wiring Diagram:

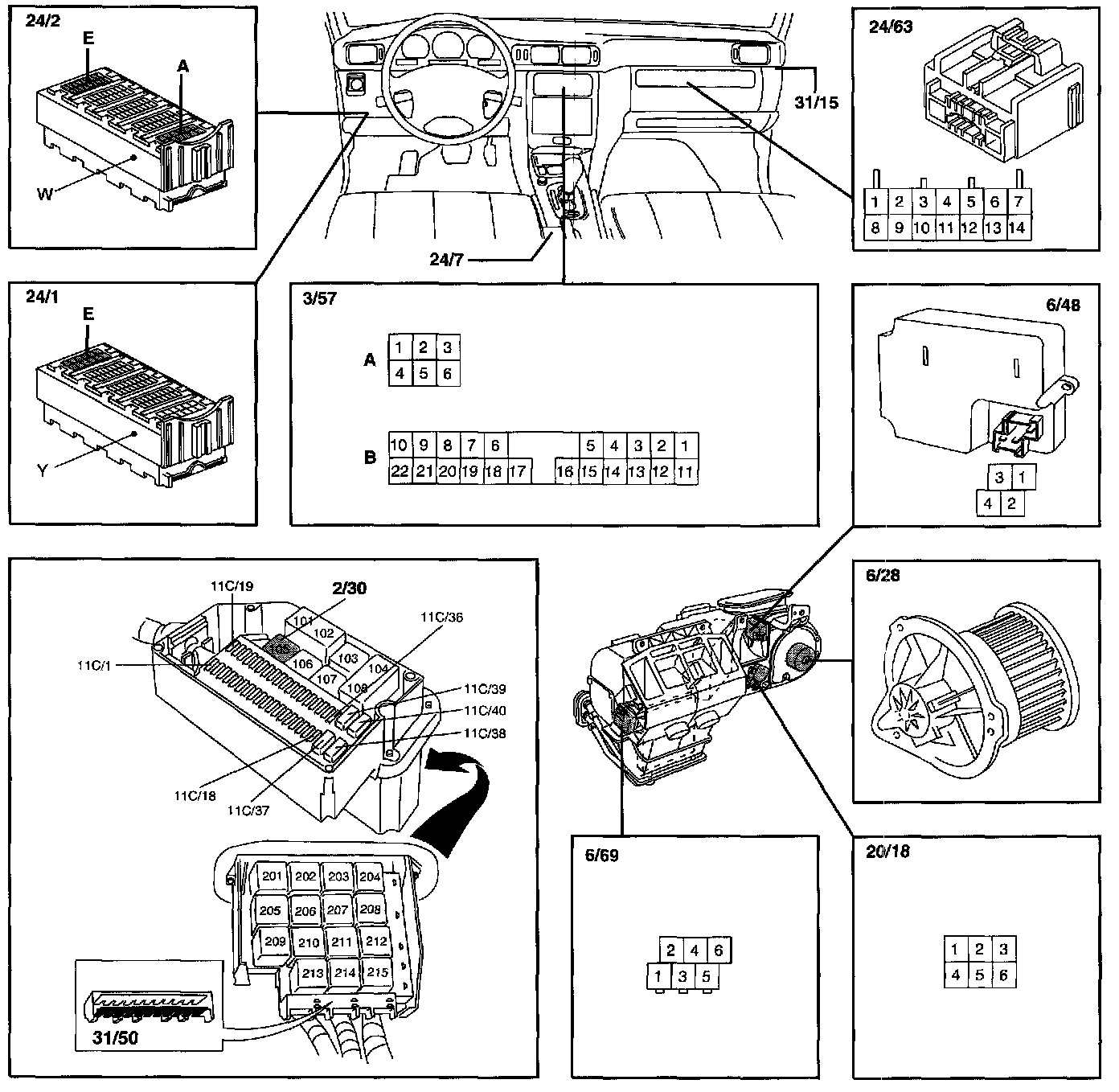

Standard Heater STD - Component Location:
To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
