Manual Climate Control MCC

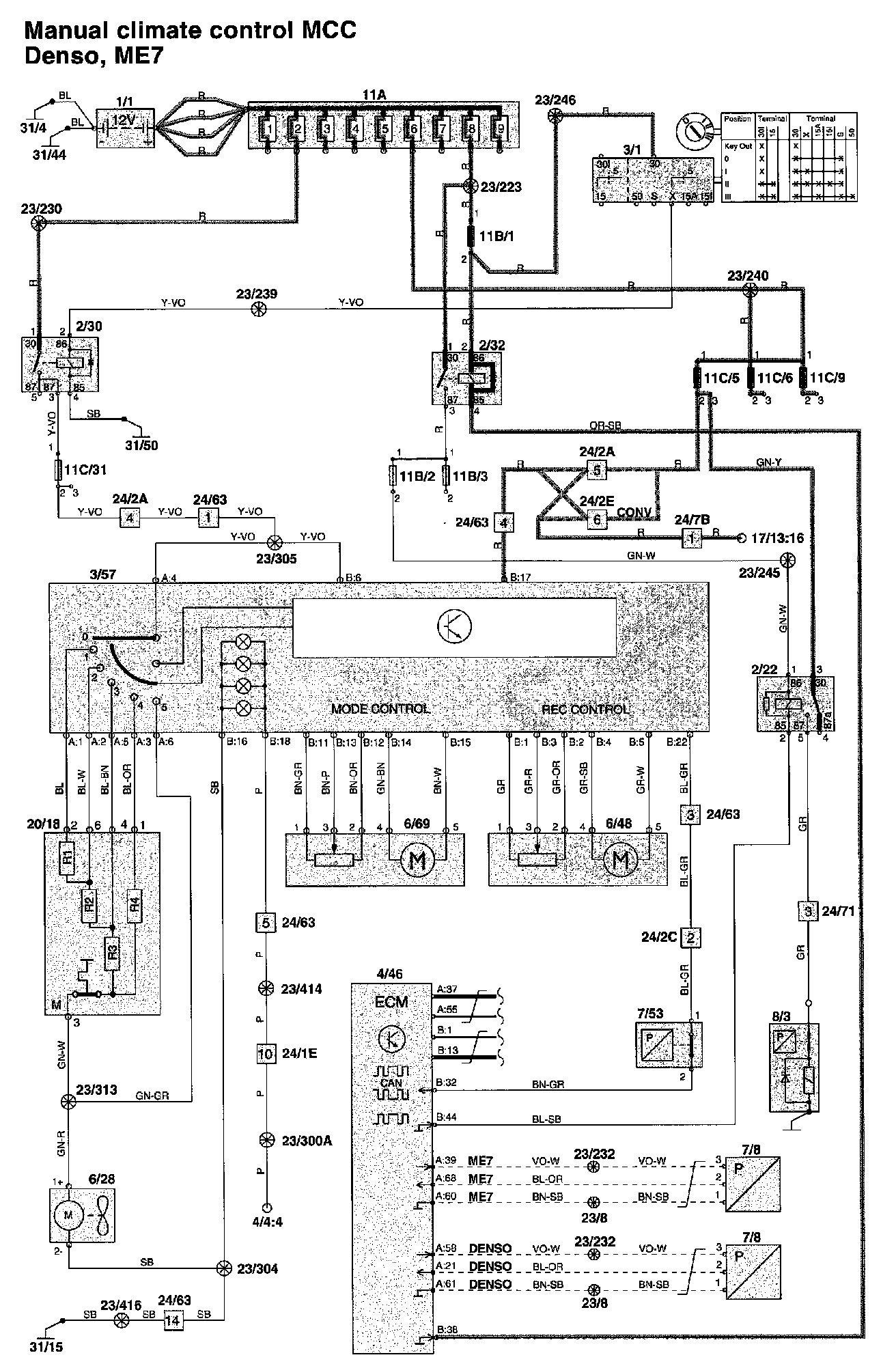

Manual Climate Control MCC - Part 1:

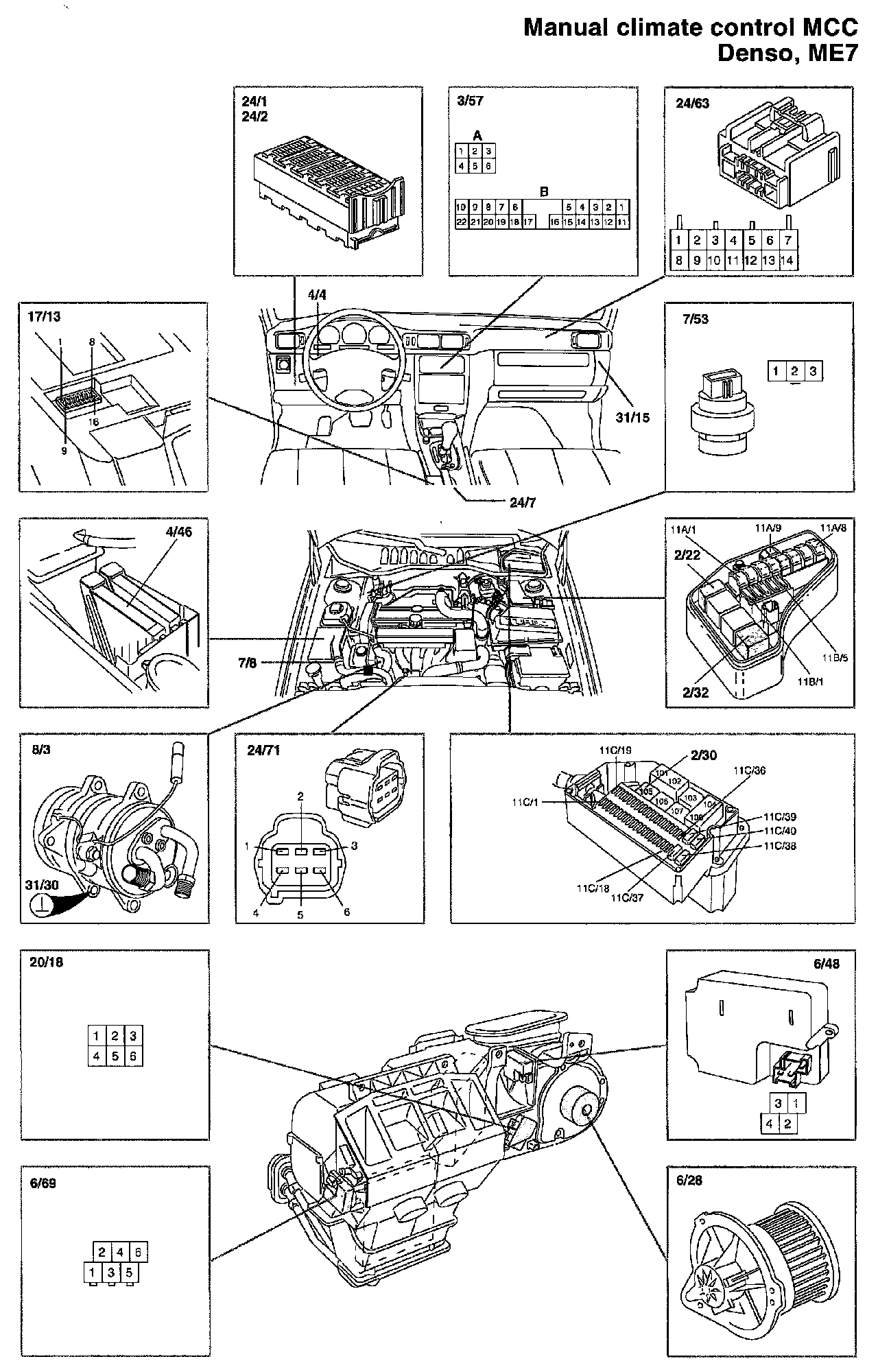

Manual Climate Control MCC - Part 2:






Diagram Legend, Diagram Legend

Wire Color Code Identification and other Abbreviations, Wire Color Code Identification and Other Abbreviations
