Checking D+ Supply

Checking D+ supply

Checking cable
Check cable between control module #5 and generator (GEN) D+ terminal for a short-circuit to supply voltage according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.

Note! If the D+ circuit is short-circuited to supply voltage the cable will probably burn off when the ignition is switched on, therefore fault-trace the circuit for an open-circuit according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.

Other information:

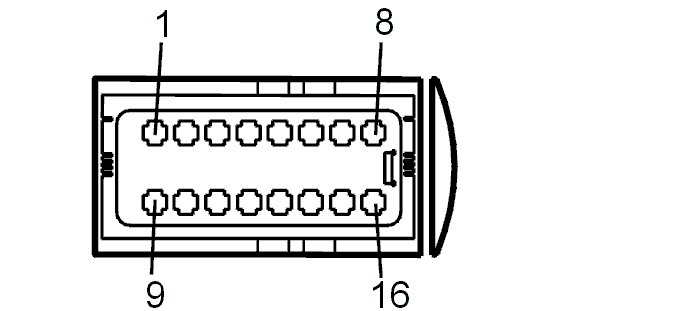

- To access the control module/connect breakout box see.










Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off.
- Reinstall connectors, components etc.
- Ignition on.
- Activate heater.
Check heater function according to Test driving of Additional heater/Parking heater Initial Inspection and Diagnostic Overview.





Does the heater function?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFIED - FAULT FOUND

VERIFICATION FAILED - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking cable

-------------------------------------------------
