Auxiliary Cabin Heater Timer: Service and Repair

Replacing the clock

Removal:

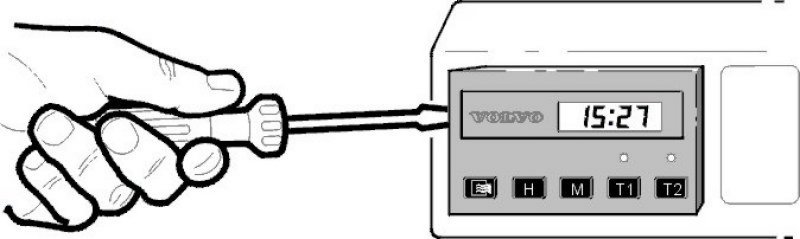

- Pry out the side of the clock using a screwdriver. Pull the clock outwards. Remove the clock.
- Remove the connector.

Installation:
- Connect the connector to the new clock. Push in the new clock.
- Set the clock. Test the function.
