Temperature Damper (Pass. Side)

Replacing damper motor - temperature passenger side







TTTK9 Removing damper motor - temperature passenger side
- Remove glove compartment
- Remove soundproofing panel
- Remove knee bolster if installed.

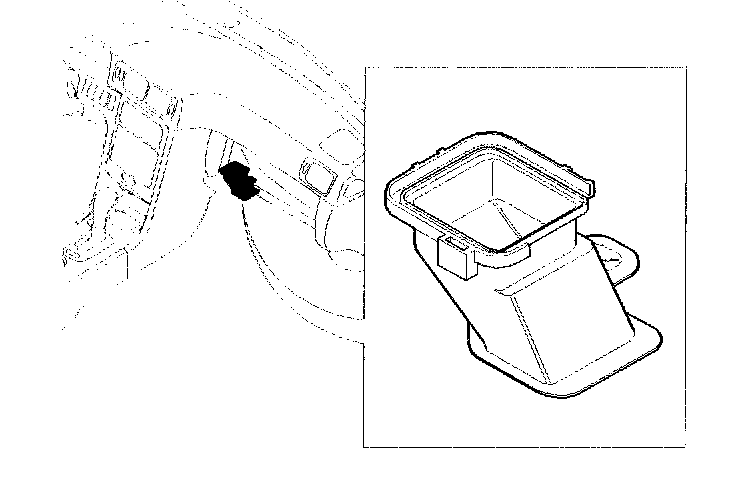

- Remove air duct for floor.


TTTK10







- Disconnect damper motor temperature passenger's side connector.
- Remove damper motor temperature passenger side.


TTTK11 Installation of damper motor temperature passenger side
- Install damper motor.
- Reconnect damper motor temperature passenger side connector.
- Reinstall air duct to floor.
- Reinstall knee bolster, if any.
- Install soundproofing panel
- Install glove compartment
- After replacement it is necessary to carry out self adjustment of the system motors.
- Check no diagnostic trouble code (DTC) was stored during repairs.
