Temperature Damper (Drivers Side)

Replacing damper motor - temperature driver's side







TTTK6 Removing damper motor temperature driver's side
- Remove soundproofing panels
- Remove knee bolster if installed.

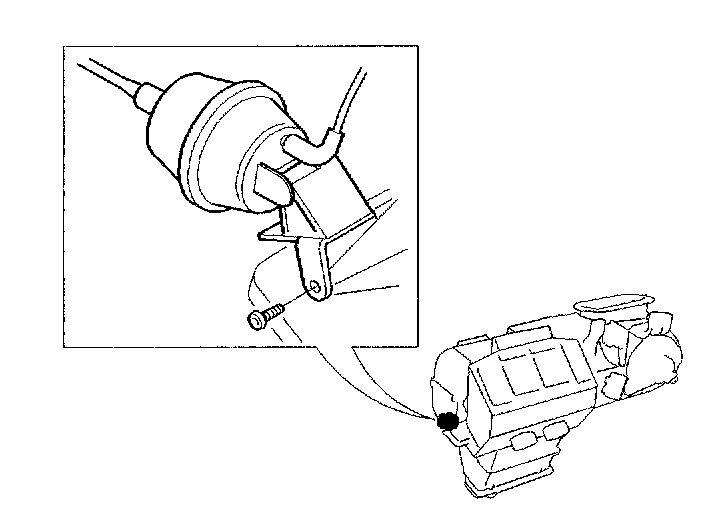

- Remove vacuum control box for cruise control if fitted.


TTTK7

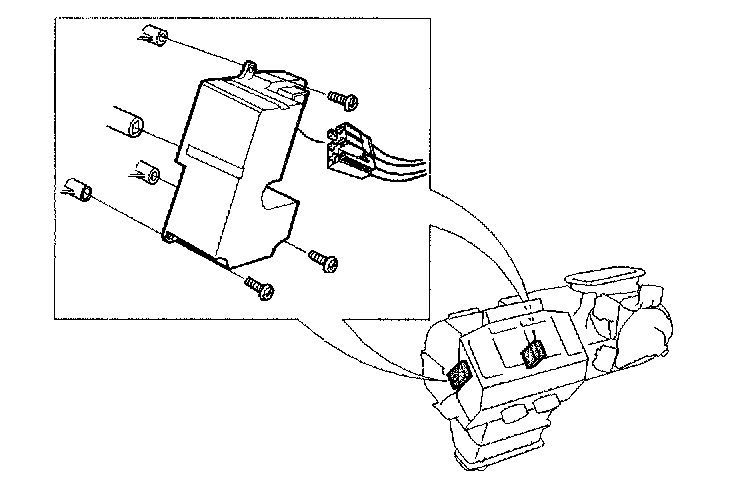

- Disconnect damper motor temperature driver's side connector.
- Remove damper motor temperature driver's side.

TTTK8 Installation of damper motor temperature driver's side
- Install damper motor.
- Reconnect damper motor temperature driver's side connector.
- Reinstall vacuum control box for cruise control if fitted.
- Reinstall knee bolster, if any.
- Install soundproofing panels
- After replacement it is necessary to carry out self-adjustment of the system motors.
- Check no diagnostic trouble code (DTC) was stored during repairs.
