Recirculation Damper

Replacing damper motor recirculation

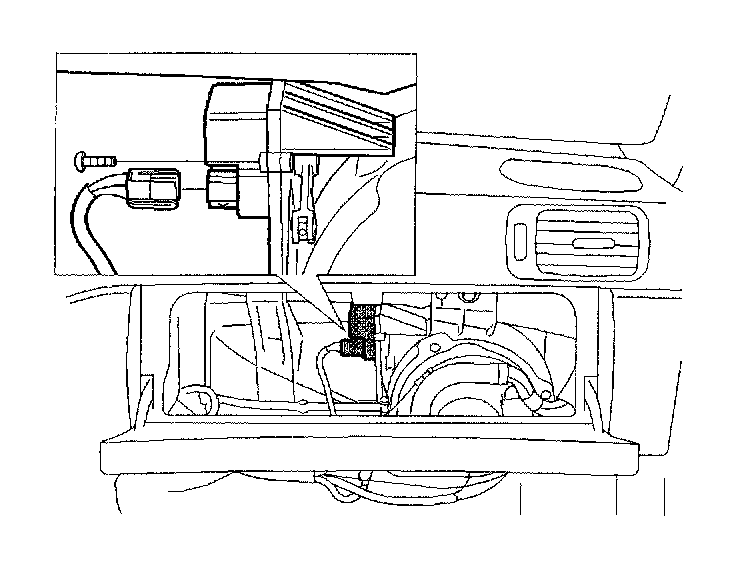

TTTK1 Removing damper motor recirculation
- Ignition off.
- Remove glove compartment according to Interior, exterior See other manual: Panel and SRS passenger airbag module.
- Remove soundproofing panels
- Disconnect damper motor recirculation connector.
- Remove damper motor recirculation.


TTTK2 Installing damper motor recirculation
- Install damper motor recirculation.
- Reconnect damper motor recirculations connector.
- Install glove compartment
- Install soundproofing panels
- After replacement it is necessary to carry out self- adjustment of the system motors.
- Check no diagnostic trouble code (DTC) was stored during repairs.
