Procedures

Note! As the illustrations in the information are used for different model years and/or models, certain variations may occur. However, the essential information in the illustrations is always correct.

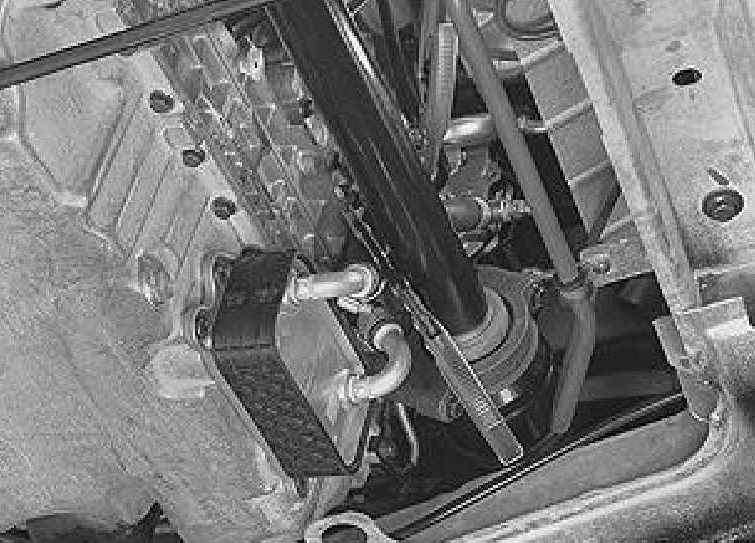

Removing the oil cooler:
Raise the car.





Clamp both the oil cooler coolant hoses together with lock grip pliers.

Remove
- the coolant hoses from the oil cooler.
- the oil cooler mounting screws.

Lift down the oil cooler.

Installing the oil cooler:
Use new seals.
The seals must be greased prior to installation.

Install





- the oil cooler. Screw the 4 oil cooler screws into place. Tightening torque: 17 Nm (12 ft. lbs.)
- the coolant hoses.

Remove the lock grip pliers.

Check
- the engine oil level.
- the coolant level.

Check for leakage





Start the engine and run it to operating temperature.
Then check that there is no leakage.
Check if the oil or coolant needs topping up.
