Modification - Crankcase Ventilation w/ New Head/Engine

From engine number 139320 (approximately chassis number 098900) a modified crankcase ventilation has been introduced into production. A hose was added from the oil trap to the cylinder head. Only the later type of cylinder heads and engine are available as replacement parts

Replacing Cylinder Head/Engine

Part 1 Of 2:

Part 2 Of 2:

When replacing a cylinder head or engine, the crankcase ventilation must be upgraded to the later type.

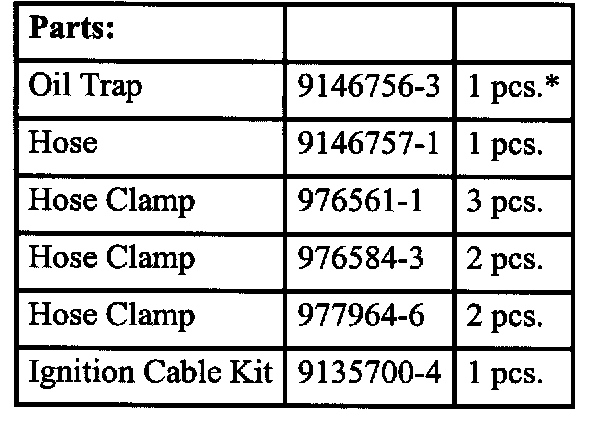

- The later type of oil trap has to be installed when replacing a cylinder head.

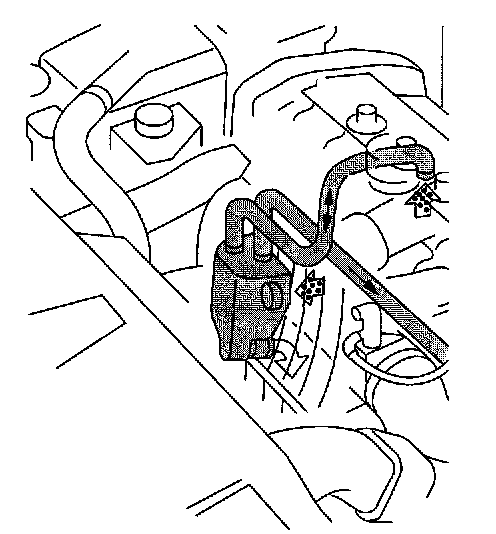

- A hose has to be installed from the oil trap to the cylinder head.
- A new ignition cable kit with a longer cable must be installed
