Piston: Testing and Inspection

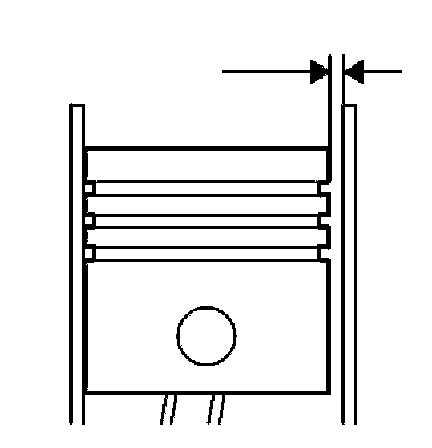

Piston running clearance
Example
Measured Cylinder Diameter: 81.015 mm
Measured Piston Diameter: 80.995 mm __________
The piston running clearance is: 0.020 mm

The piston running clearance should be 0.010 - 0.030 mm
