Procedures

VVT solenoid, inspection and cleaning

Inspection




Remove VVT solenoid from camshaft cover.

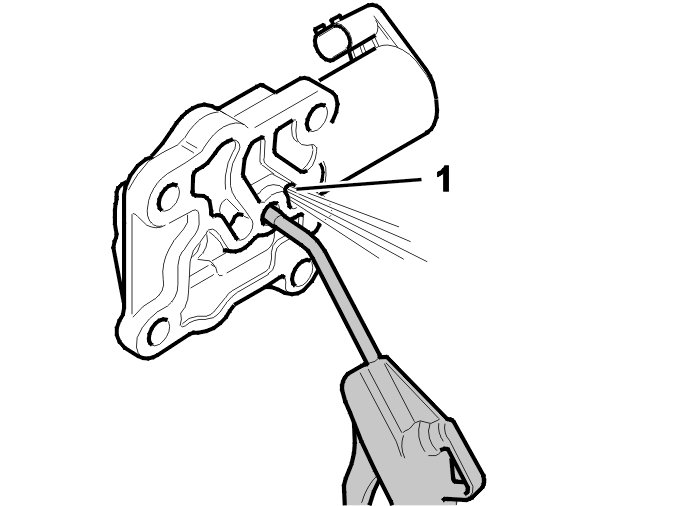

Blow through center hole with compressed air.
Air should emerge from inner hole (1) nearest coil.





Connect power to solenoid. Solenoid should click.

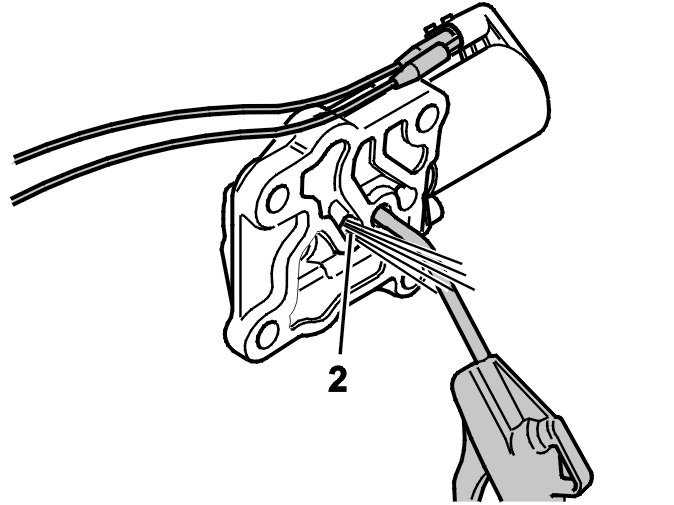

Blow through center hole with compressed air.
Air should emerge from outer hole (2).
If plunger is sticking or solenoid fails to operate electrically, the direction of flow will be unchanged from step 1.

VVT solenoid, cleaning

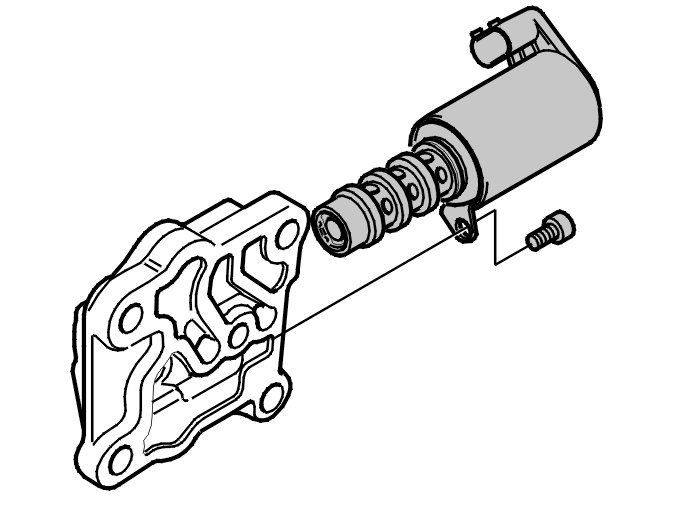

Remove solenoid from aluminum housing.

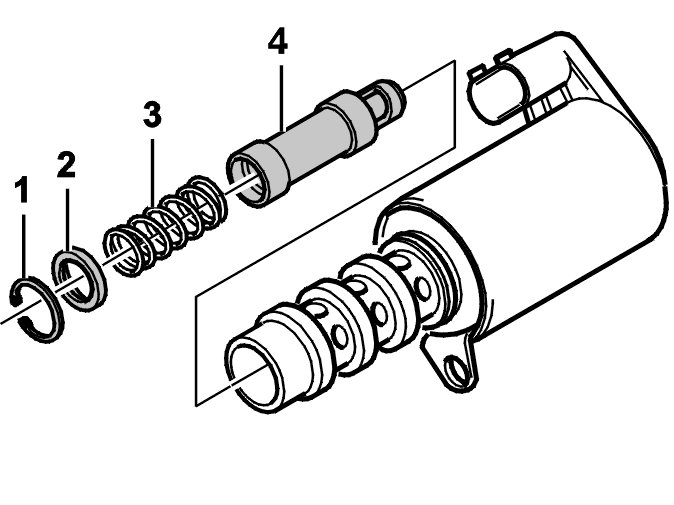

Remove:
- snap ring (1)
- washer (2), spring (3) and plunger (4).
Inspect and clean all parts.
Blow out aluminum housing.
Oil parts with engine oil.
Reassemble solenoid.
Check operation as described in operations 1 and 2.
Reinstall solenoid in car using new seal.

Testing
Erase diagnostic trouble codes.
Test-drive car.
Check that no new diagnostic trouble codes are displayed.
If new codes are displayed, continue troubleshooting as per VIDA.
