Cargo Compartment Fans

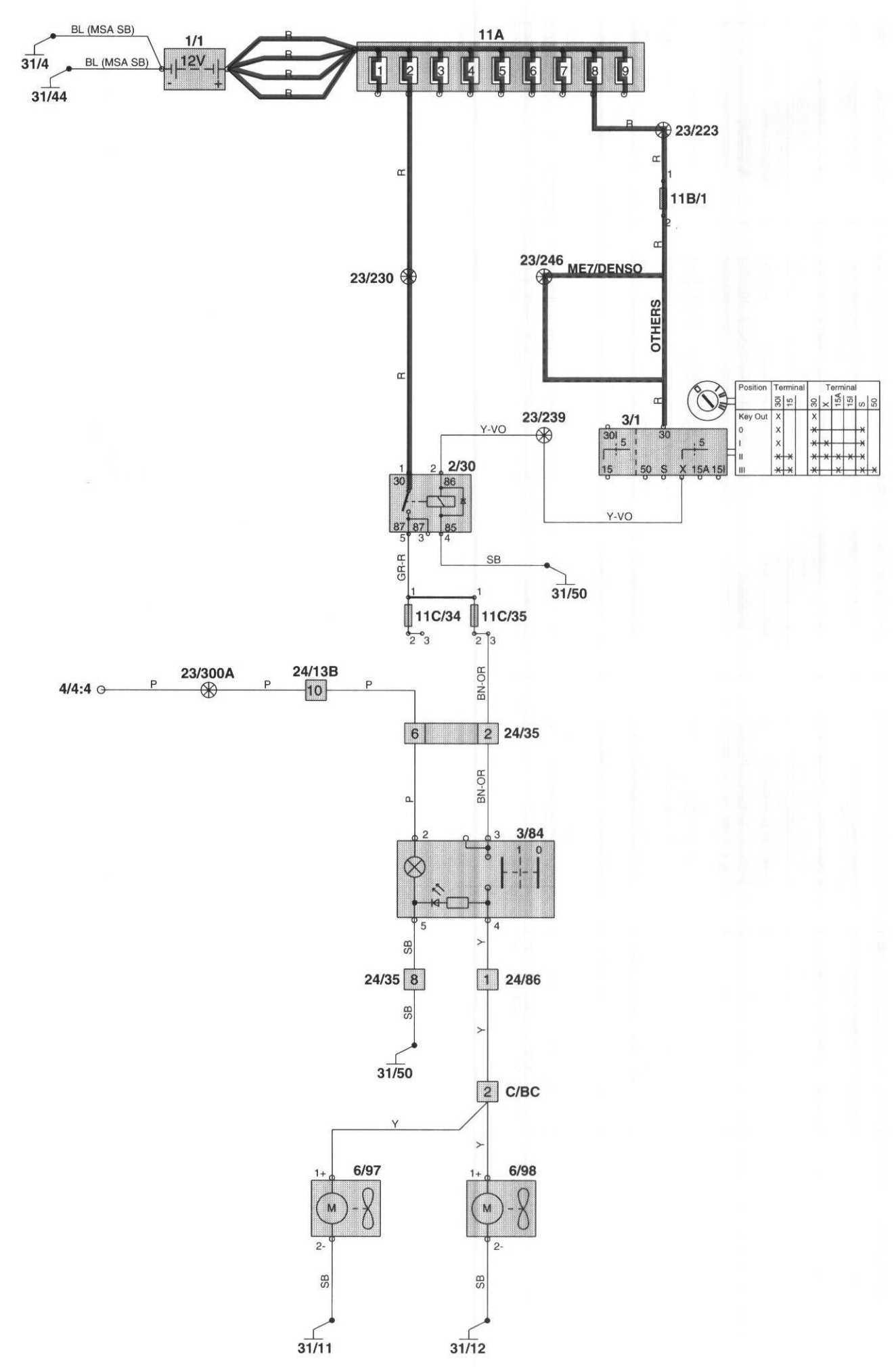

Cargo Compartment Fans - Wiring Diagram:

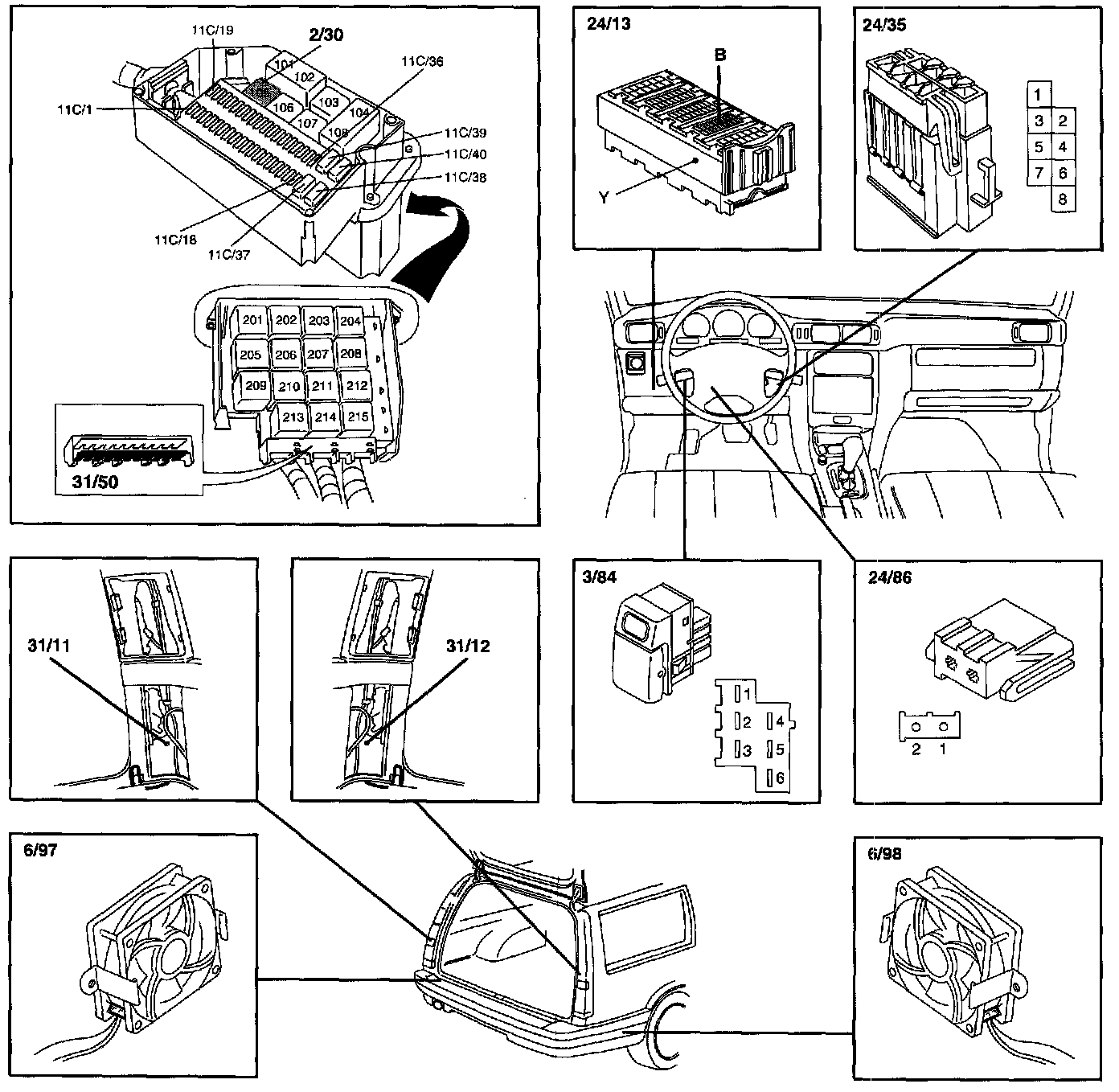

Cargo Compartment Fans - Component Location:





To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
