Dome Lamp

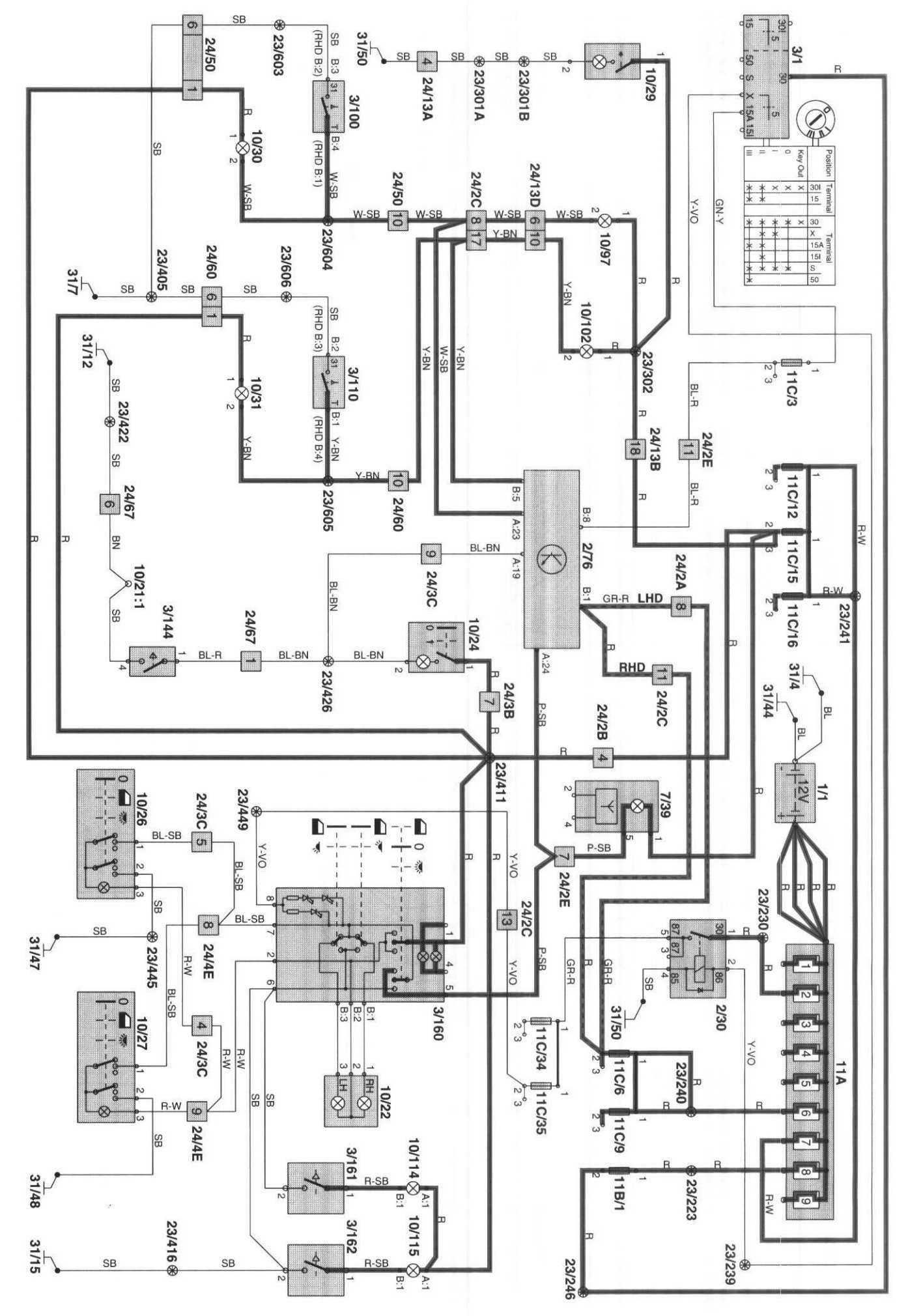

Interior Lighting C70 Convertible - Wiring Diagram:

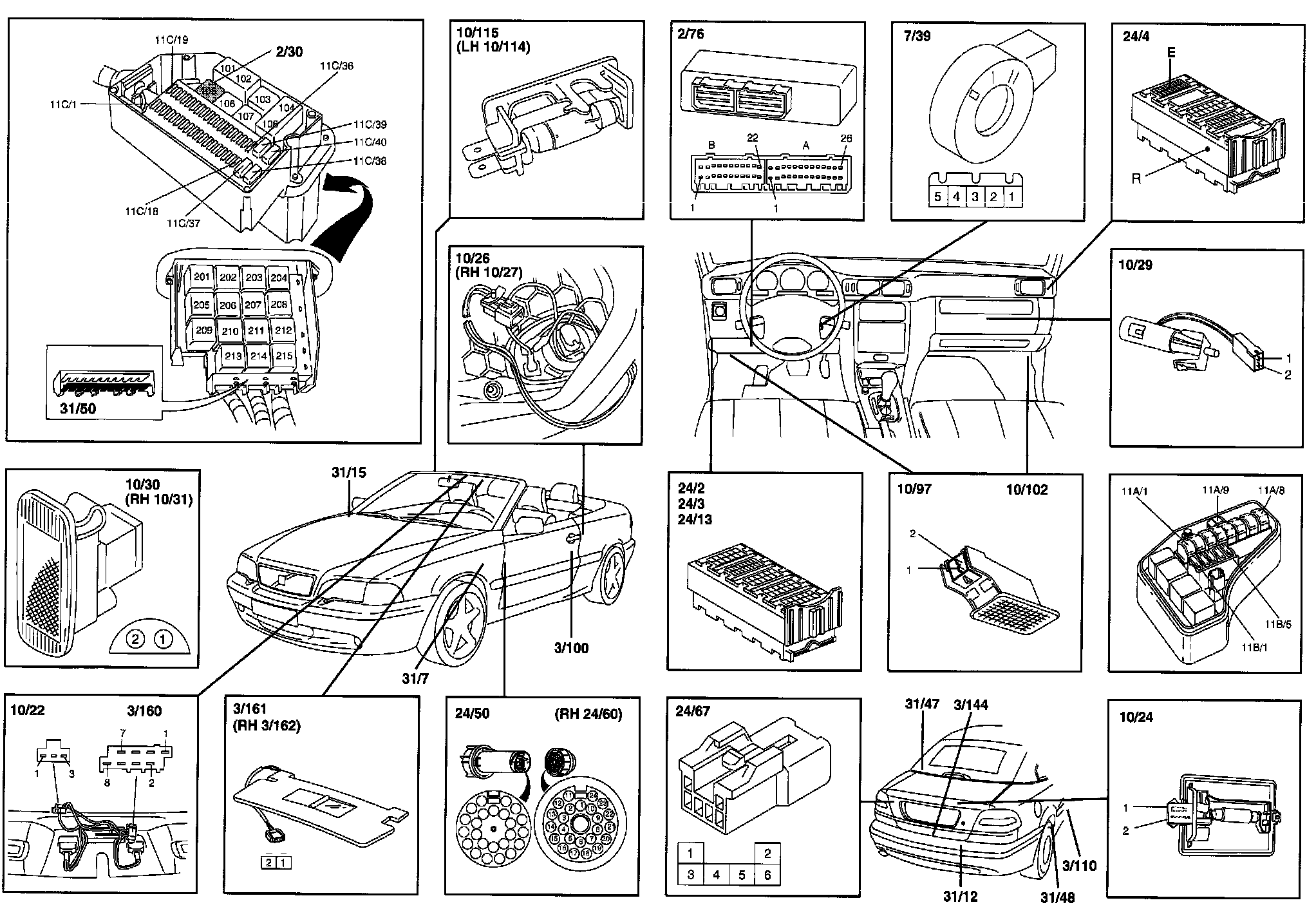

Interior Lighting C70 Convertible - Component Loc.:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
