Tow Hitch Cable Harness

24/70A
1 Left turn signal lamp
2 Right turn signal lamp
3 Brake (stop) lamps
4 Parking lights
5 Parking lights
6 Ground terminal

24/70B
1 30-supply
2 15I-supply
3 Reversing lamp
4 Fog tail lamp
5 Fog tail lamp, bridging
6 Ground terminal

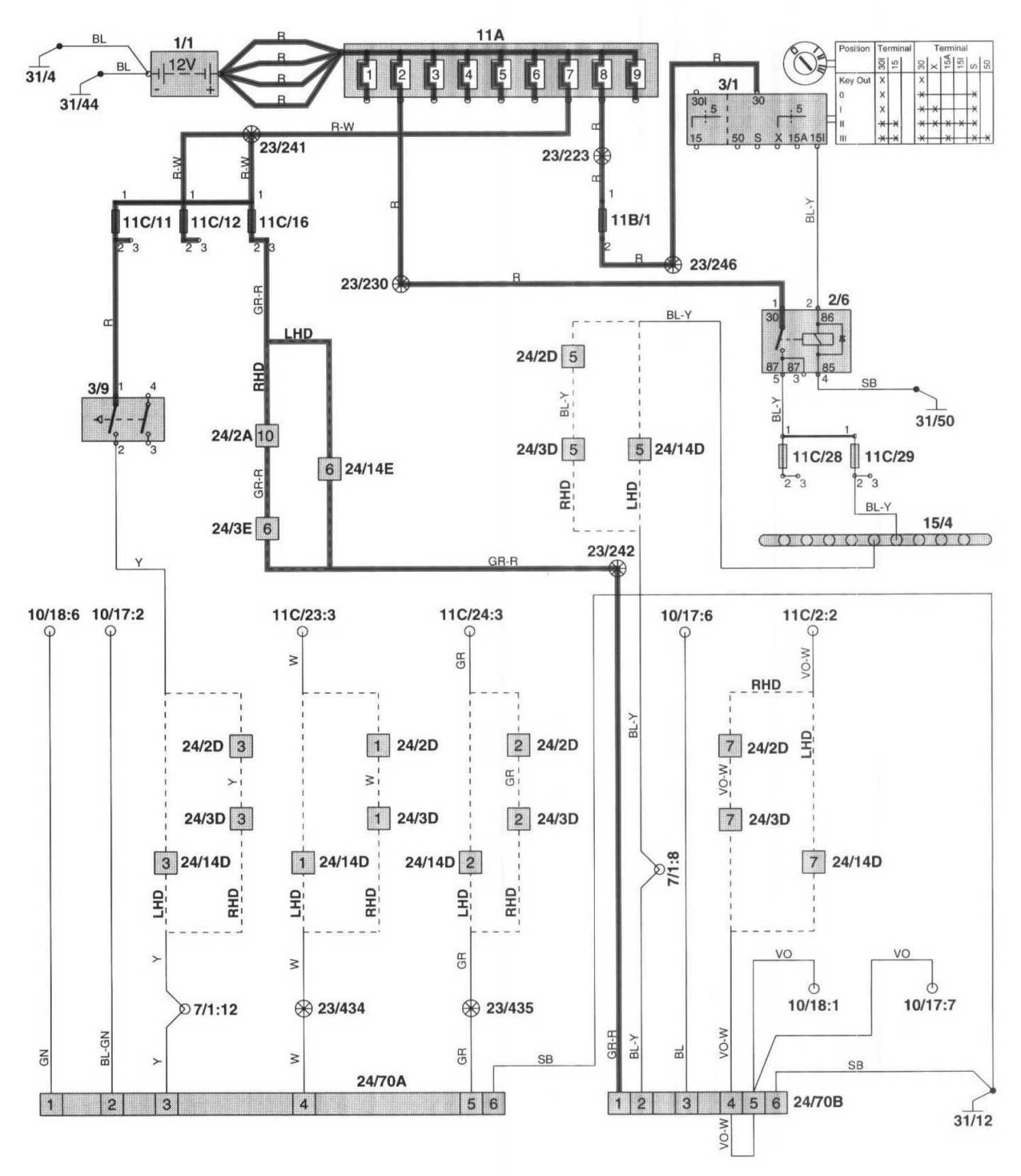

Tow Hitch Wiring Coupe - Wiring Diagram:

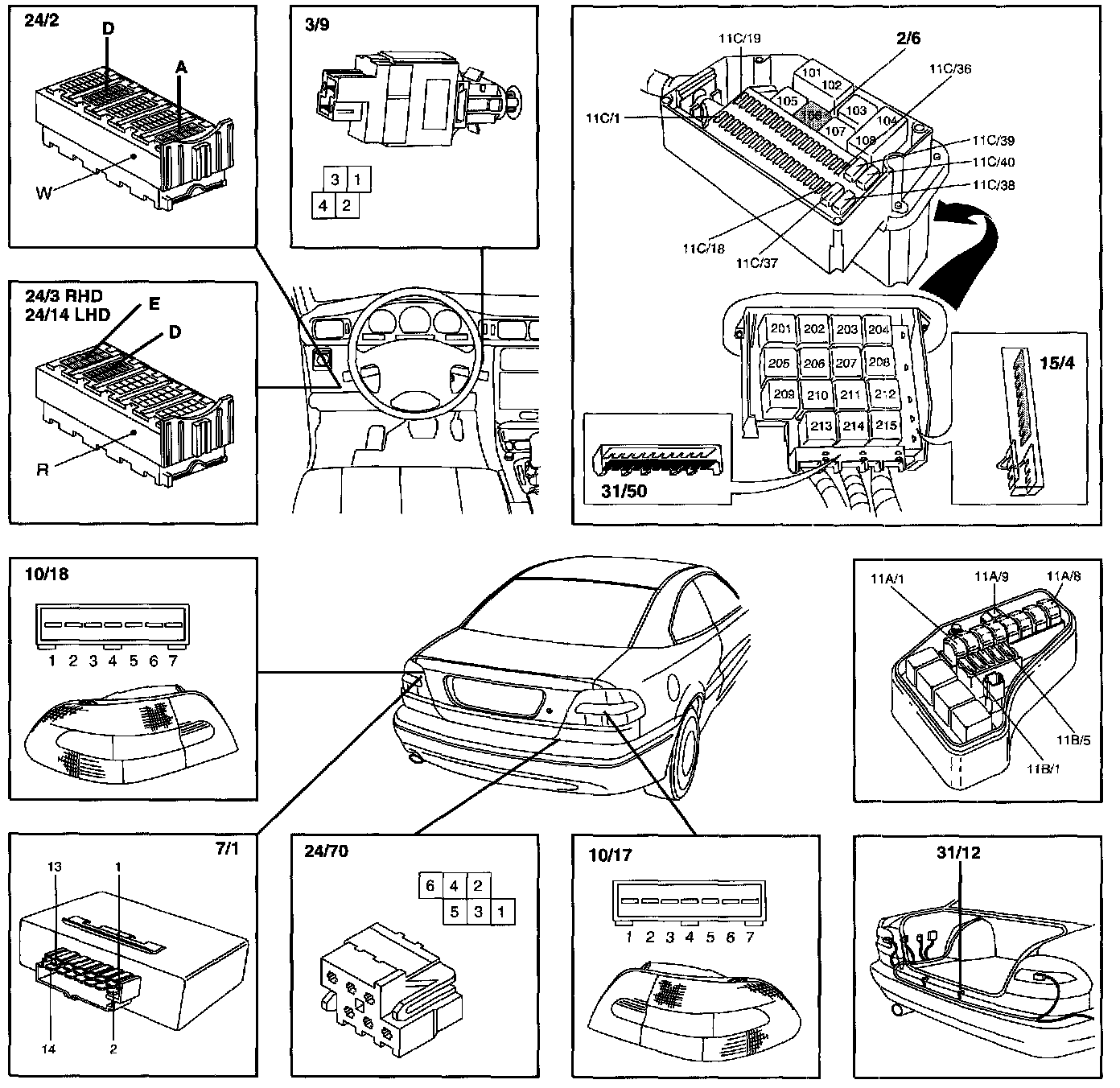

Tow Hitch Wiring Coupe - Component Location:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
