Immobilizer




Immobilizer Fenix 5.2, Denso, ME7 - Wring Diagram:

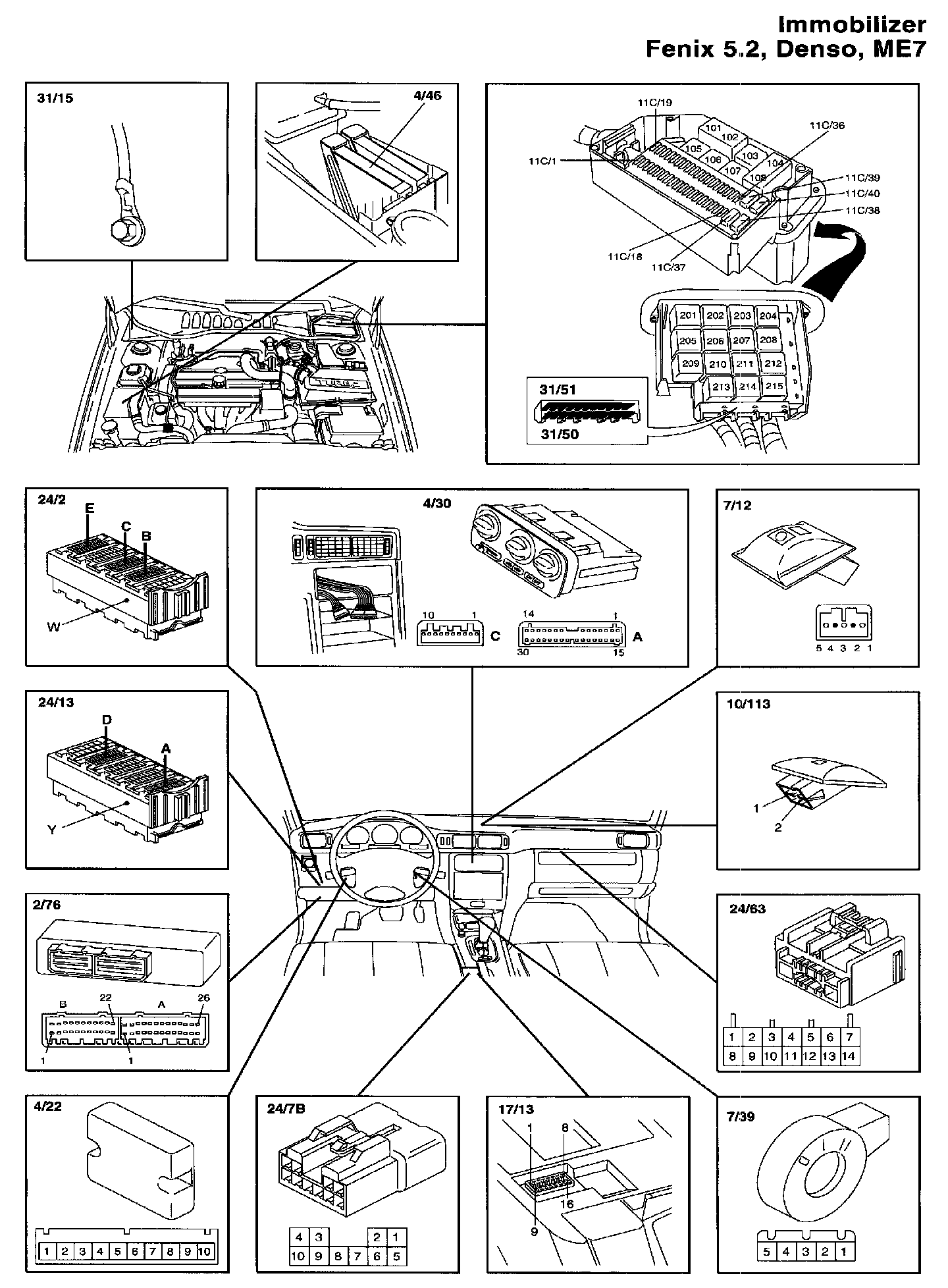

Immobilizer Fenix 5.2, Denso, ME7 - Component Loc.:





To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
