Instrument Cluster / Carrier

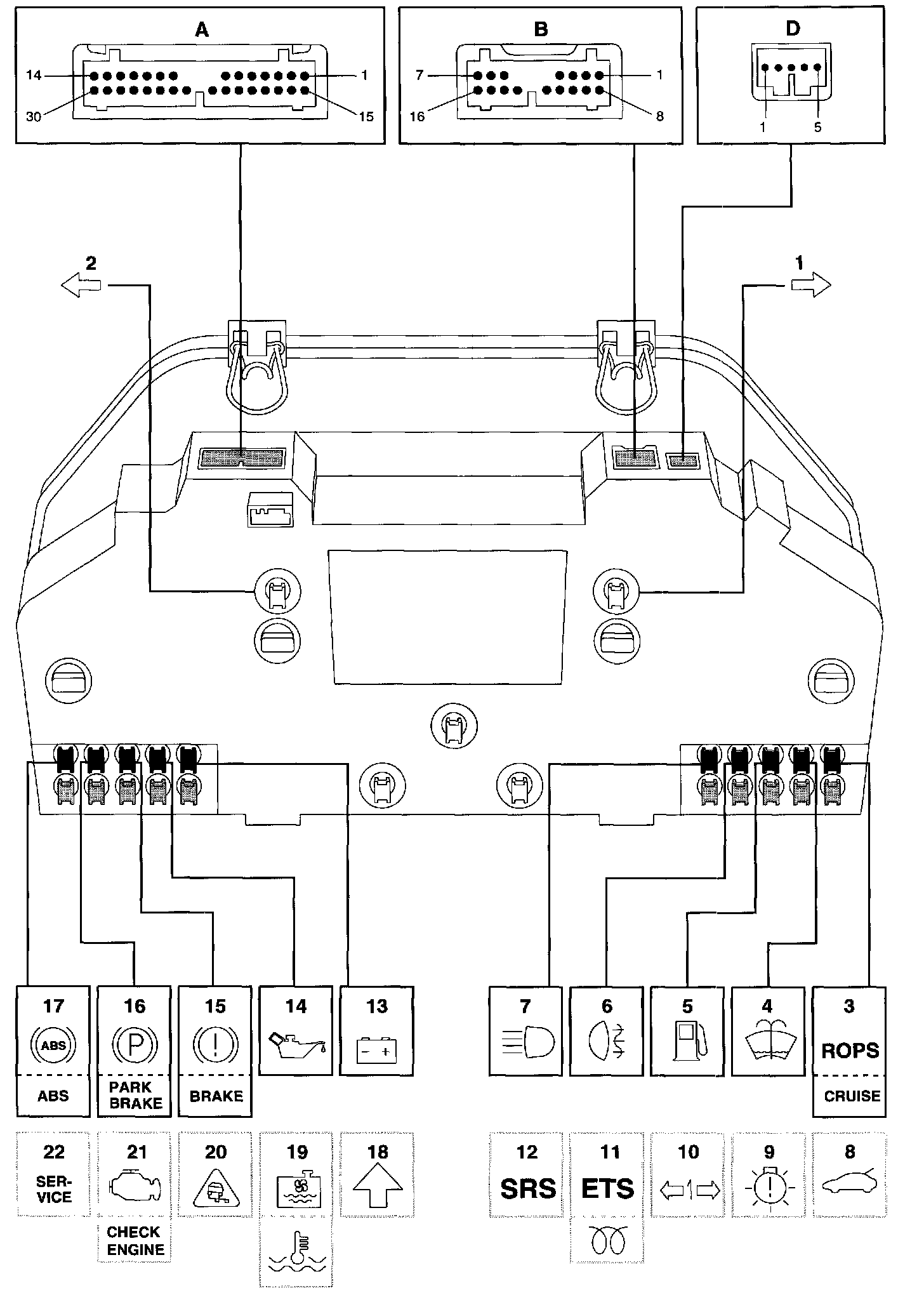

Connectors in combined instrument panel

A 30-pin connector
1 Turn signal lamp, right (+)
2 CAN-communication
3 CAN-communication
4 Fuel level sensor (-)
5 Fuel level sensor (+)
6 -
7 Digital speedometer output, 12 pulses / revolution
8 -
9 Fuel consumption
10 Rheostat, instrument lighting (+)
11 Tachometer, input signal
12 Winter program and low gear selection (automatic transmission)
13 Generator signal, D+
14 Engine coolant level switch (via 4/75 on BIFUEL)
15 Signal horn (31/51)
16 30-supply
17 Power ground (31/50)
18 15-supply
19 CAN-communication
20 CAN-communication
21-23 -
24 Outside temperature sensor (+)
25 Outside temperature sensor (-)
26 Engine coolant temperature (ECT) sensor (via 4/75 on BIFUEL)
27 -
28 Brake fluid level sensor (-)
29 TRACS
30 Oil pressure sensor (-)

B 16-pin connector

1 ETS / Diesel preheating
2 Brake (stop) lamps (+)
3 SRS sensor unit
4 Data Link Connector (DLC)
5 X-supply
6 ABS Anti-lock braking system
7 Turn signal lamp left (+)
8 Tail lamps (+)
9 Turn signal lamps trailer (+)
10 Bulb failure warning sensor (-)
11 Check engine (-)
12 Brake fluid level sensor (-)
13 Parking brake switch (-)
14 Trunk lid open
15 Control module rollover bar (-) / Cruise control
16 -

C 1-pin connector
Digital speedometer output, 12 pulses / revolution (for accessories)


D 5-pin connector

1 Rheostat, instrument lighting (+)
2 Signal horn (31/51)
3 Function signal
4 Function signal
5 Function signal
