C70 Convertible L5-2.3L Turbo VIN 53 B5234T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
Heating and Air Conditioning
Connector Pin Out
:

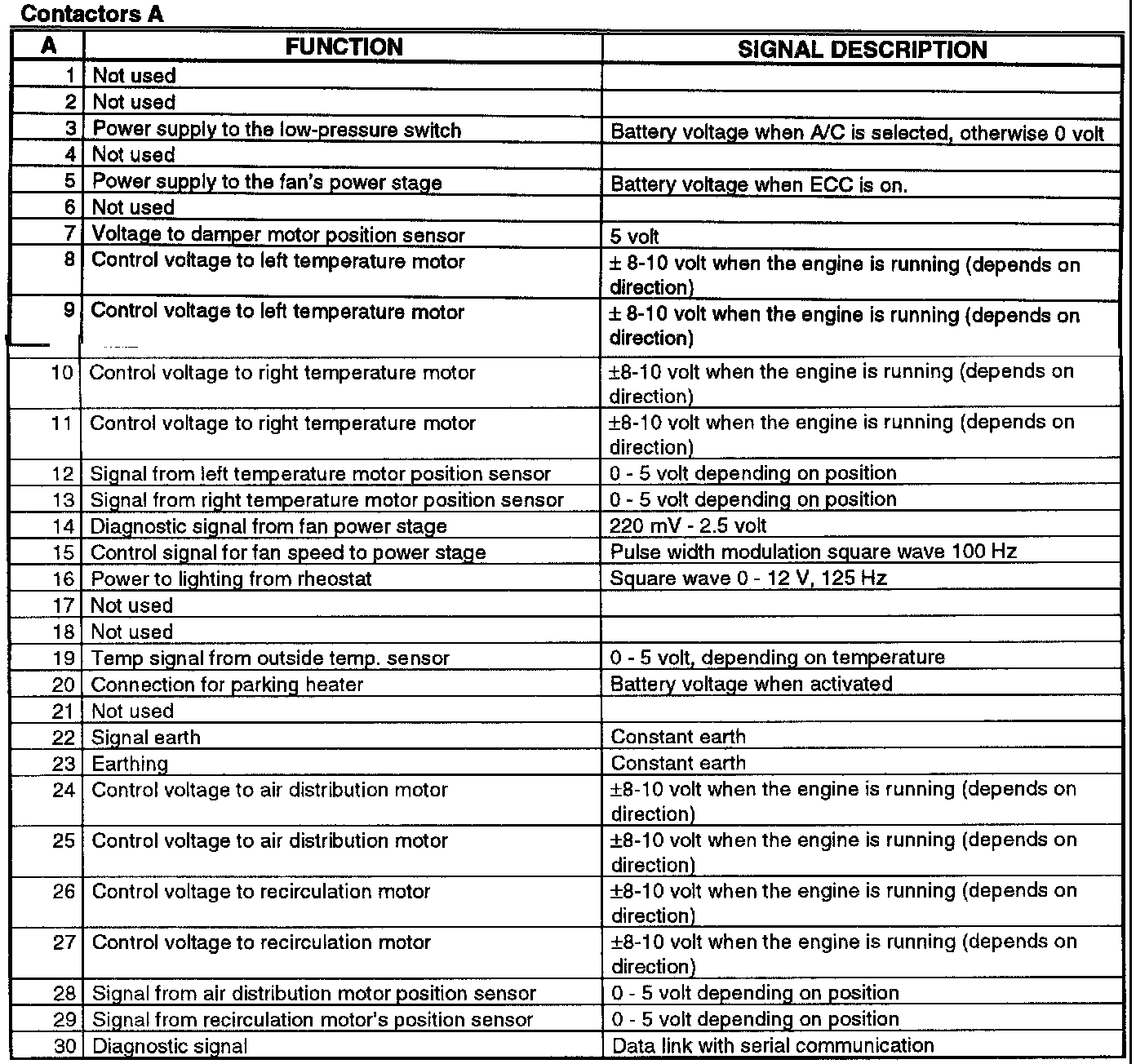

Contactor A:
Contactor C:
