C70 Convertible L5-2.3L Turbo VIN 53 B5234T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
24/7A
24/7A

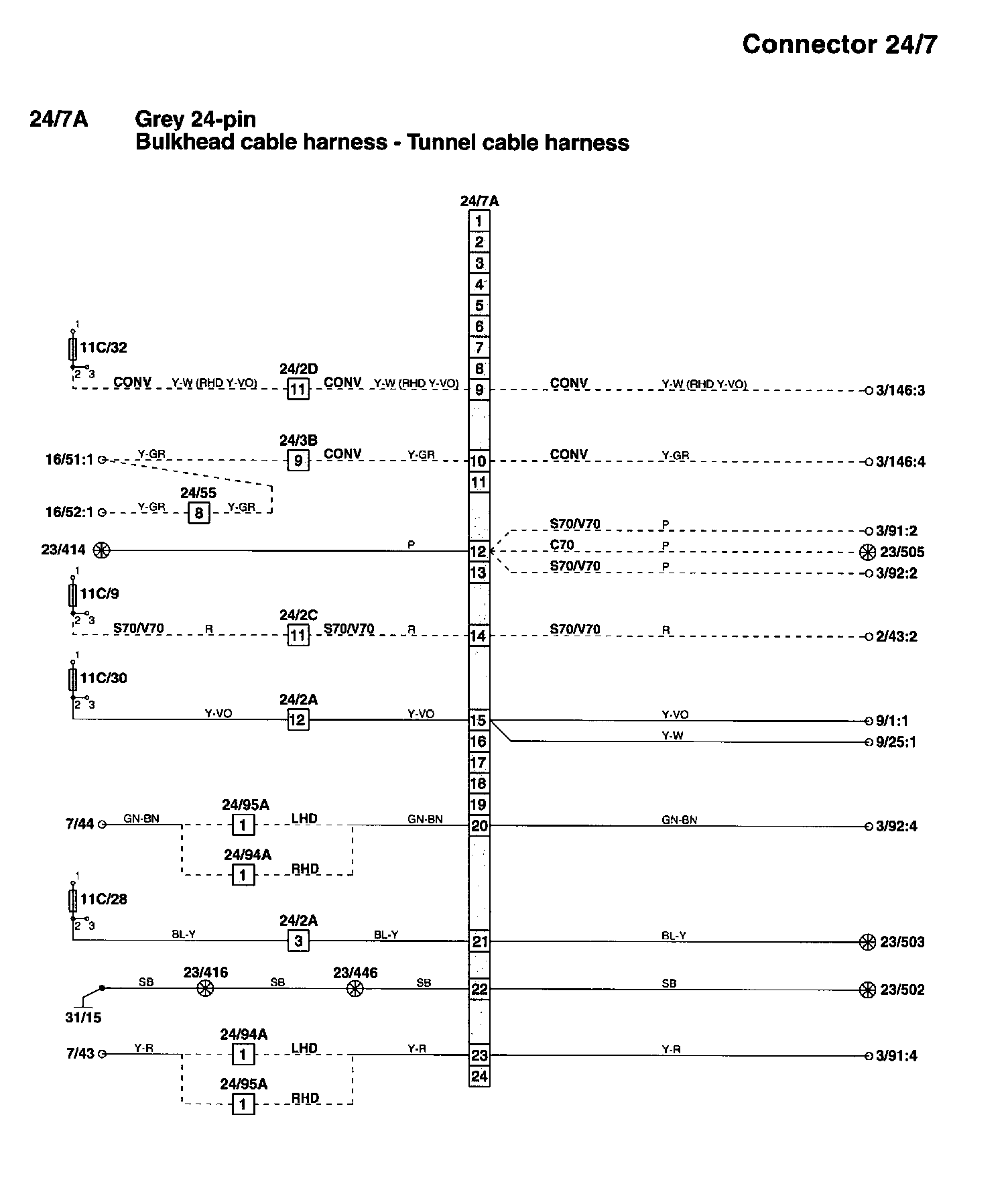

24/7A:
Connector 24/7A, 24/7B:
