C70 Convertible L5-2.3L Turbo VIN 53 B5234T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
24/75B
24/75B
24/75B:

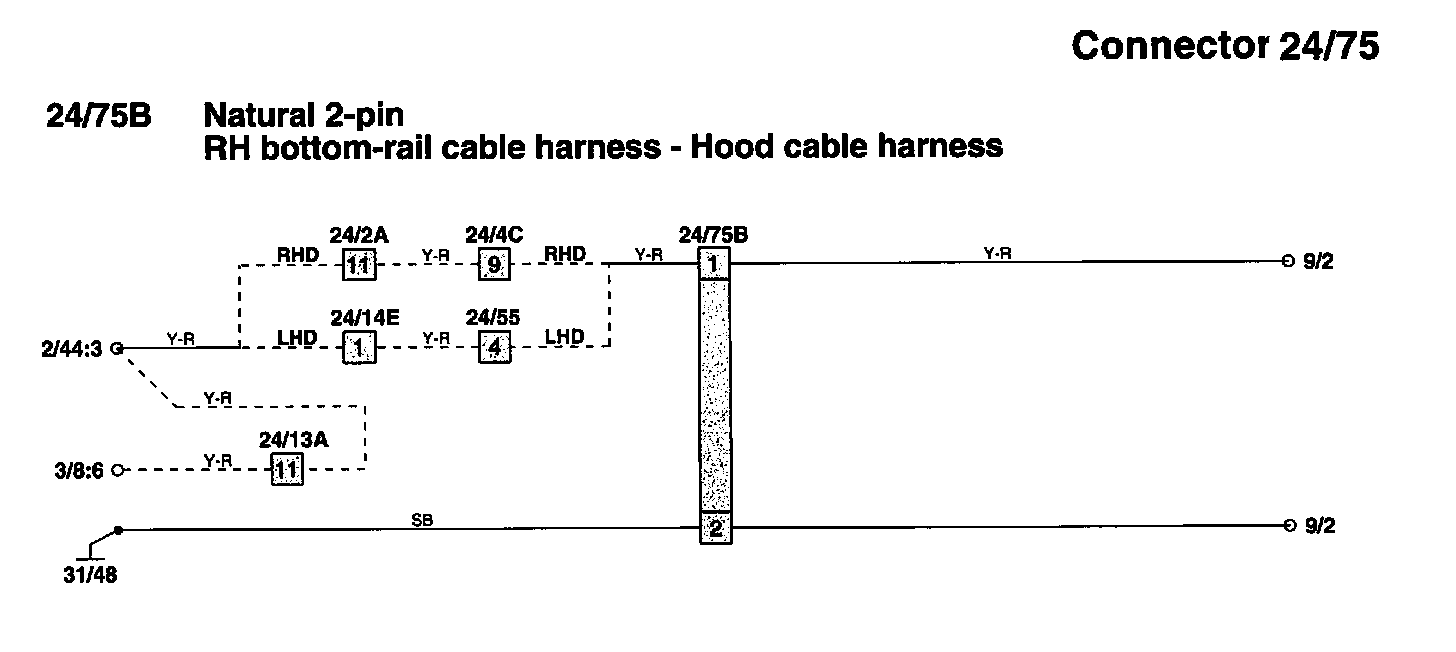

Connector 24/75A, 24/75B, 24/91:
