C70 Convertible L5-2.3L Turbo VIN 53 B5234T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
24/50
24/50
24/50:

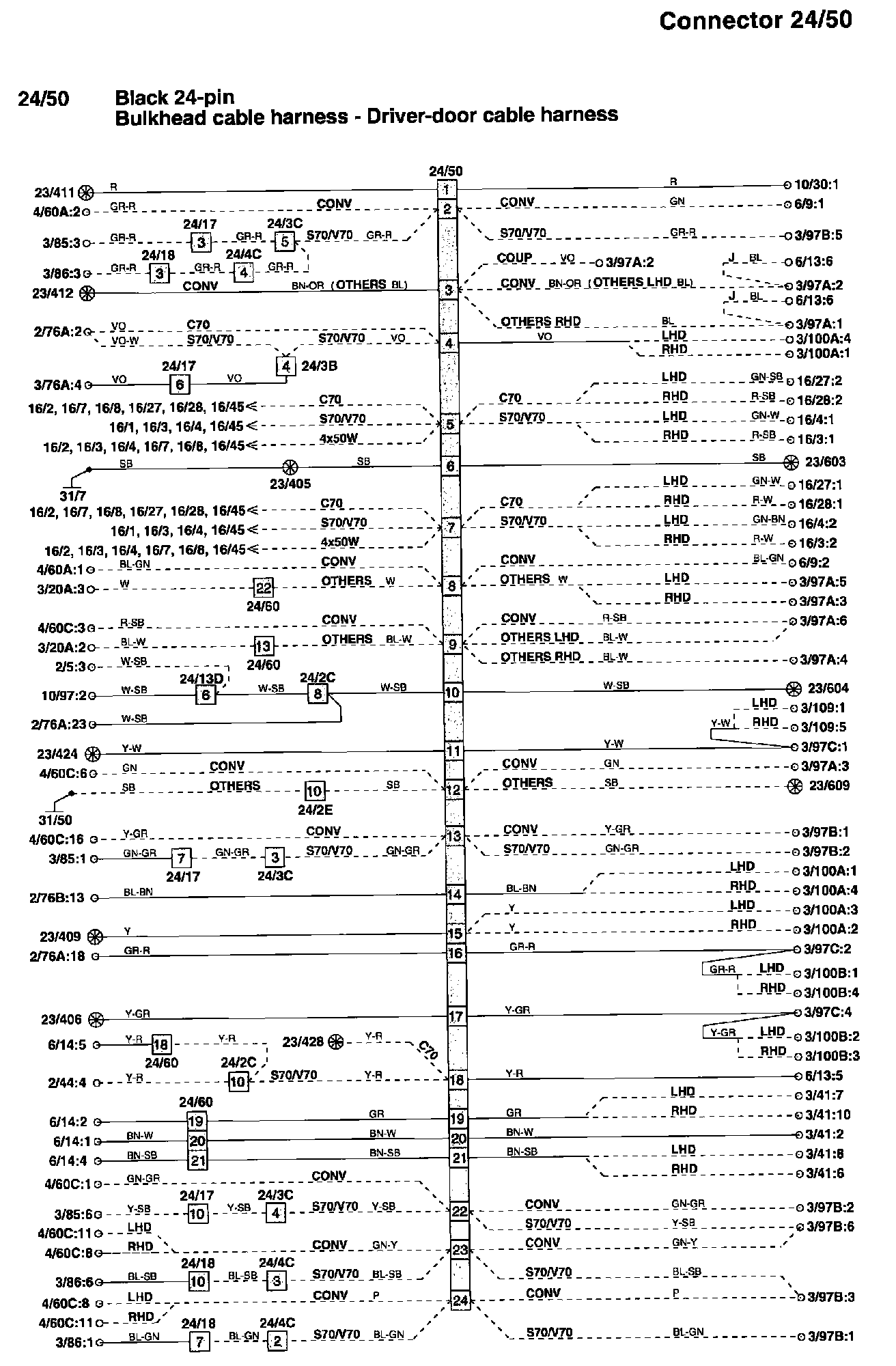

Connector 24/50:
