Traction Control Module: Testing and Inspection

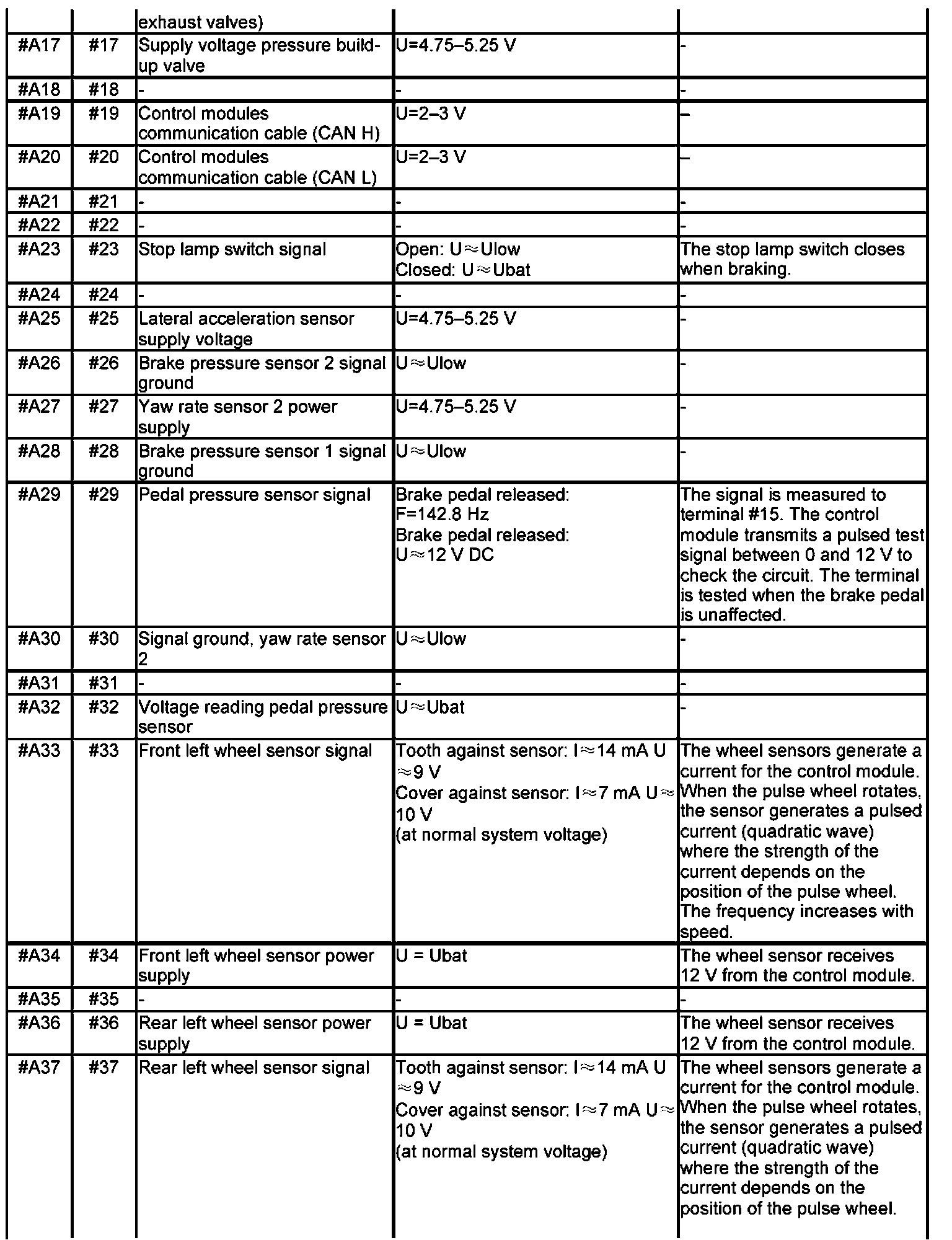

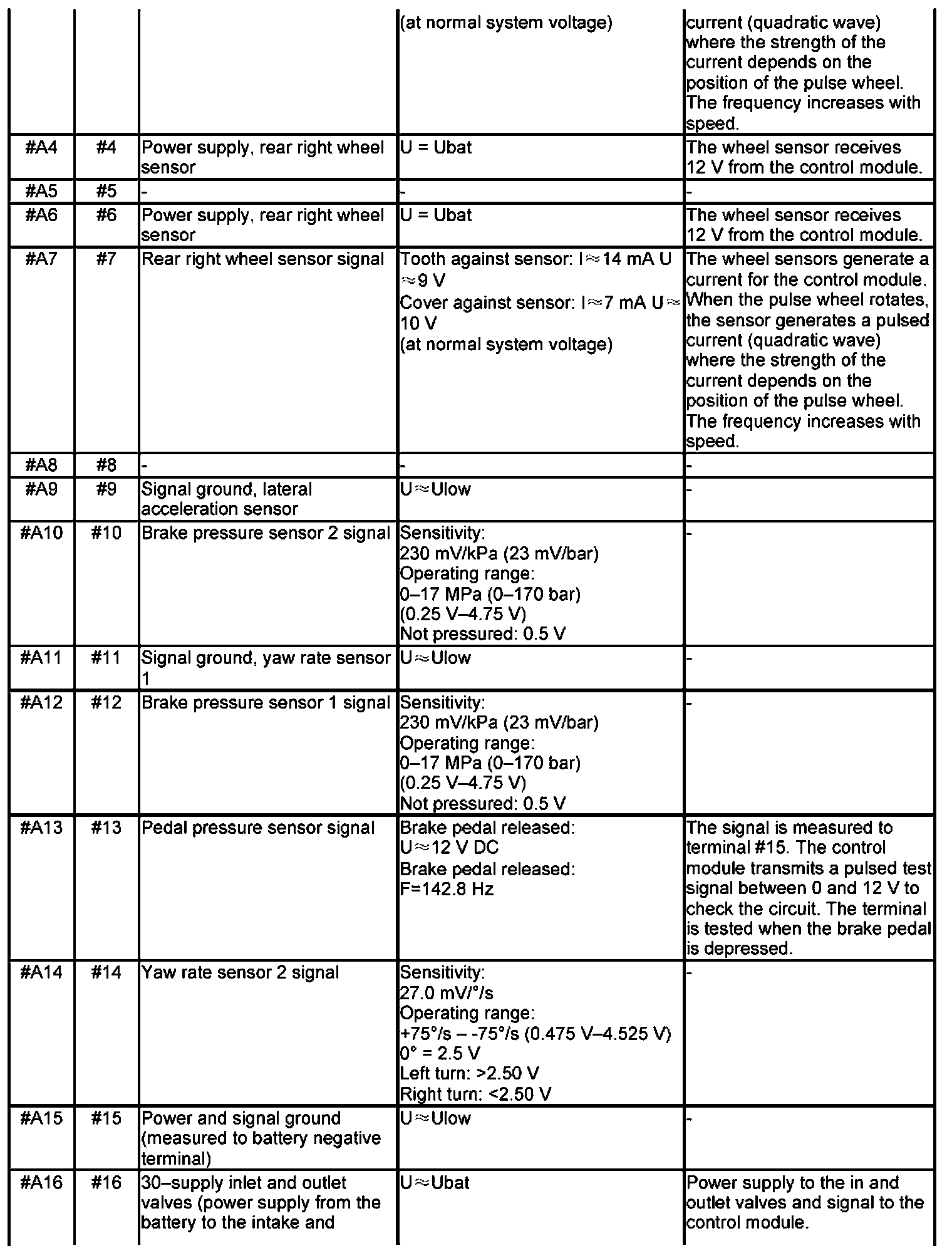

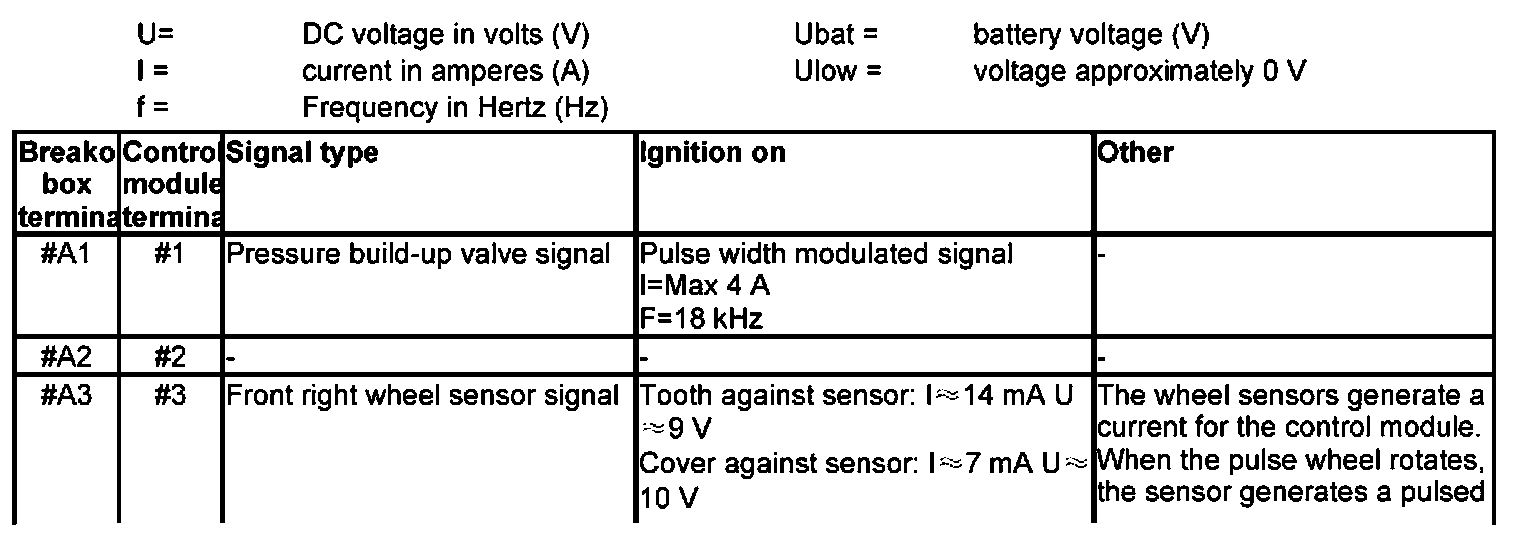

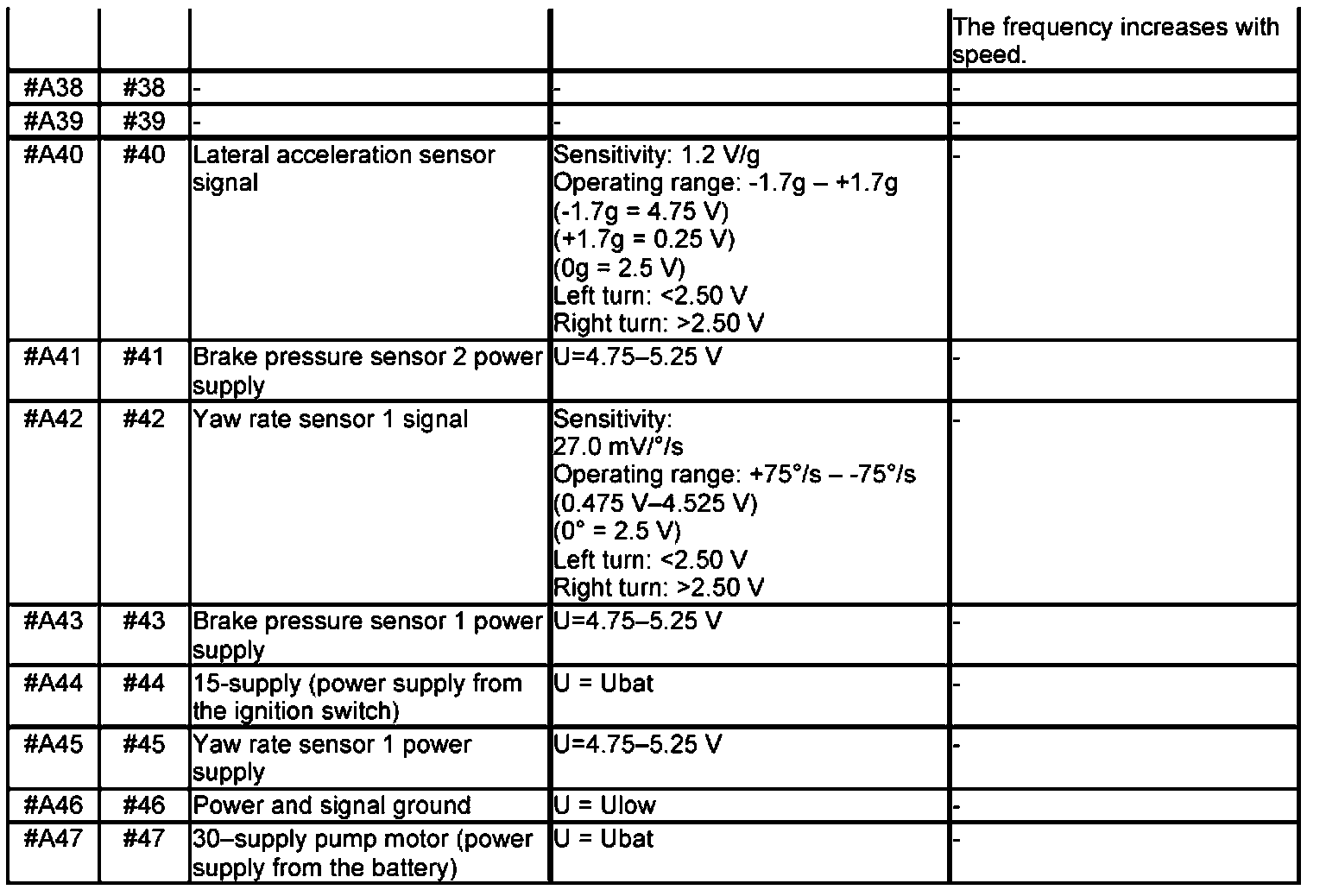

Signal specification, ABS/DSTC (dynamic stability and traction control) control module

All the values given are between the relevant terminal in column 1 and terminals #A15 or #A46 (ground), unless otherwise indicated in brackets.

Note! It is important that the breakout box is connected and that the ground terminals have been checked before readings are taken.
