Bushing, Push Rod, Replacing

Bushing, push rod, replacing

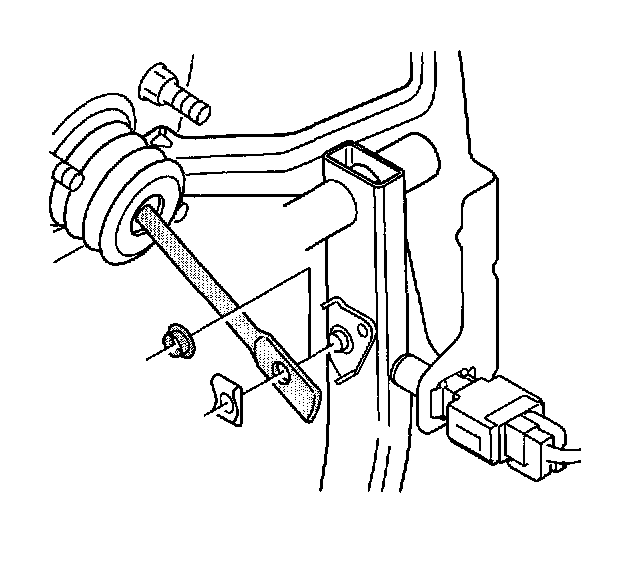

Remove bushing





Remove:
- the driver's side soundproofing panel.
- push rod clip
- push rod from brake pedal
- the small bushing from the brake pedal.

Install the new bushing
Lubricate the new bushing using grease, P/N 1161241-3.





Install:
- the bushing on the brake pedal
- the push rod and the clip
- the soundproofing panel.
