Brake Caliper Front, Overhaul

Brake caliper front, overhaul

Special tools:
115 8147 TORQUE SOCKET 1/2" 19 MM 115 8147 Torque Socket 1/2" 19 mm
981 4071 STRAIGHTENING TOOL 981 4071 Straightening Tool

Preparations
- Remove wheel.

Draining brake fluid




- Clean brake caliper carefully.
- Remove protective cap from bleed nipple and open nipple.

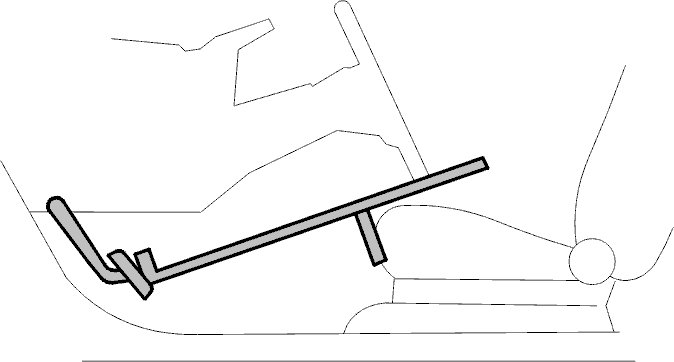

- Lock pedal in depressed position with a pedal jack.
- Collect emerging brake fluid.
- Undo brake hose (1/2 turn).

Removing brake caliper and brake pads




- Undo brake hose (1/2 turn).

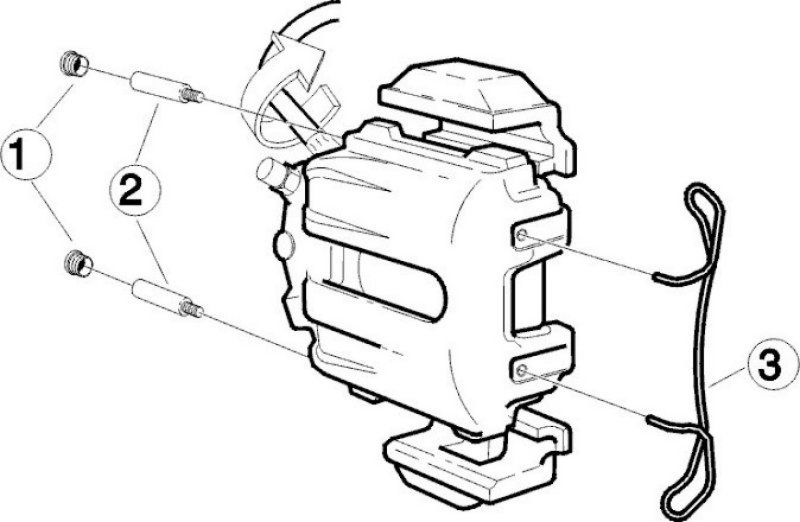

- Remove retaining spring (3) carefully to avoid deforming it.
- Remove protective caps (1) from the two locating pins (2).
- Remove locating pins, using 7 mm (0.276") hexagonal socket.

- Remove brake caliper carefully from mounting to avoid damaging brake hose.
- Remove brake pads.

Removing brake hose
- Unscrew brake caliper from brake hose.
- Drain remaining brake fluid.

Dismantling brake caliper





Warning! Take care to avoid getting fingers caught when piston is pushed out.

- Put a block of wood in front of piston. Push piston out carefully using compressed air.

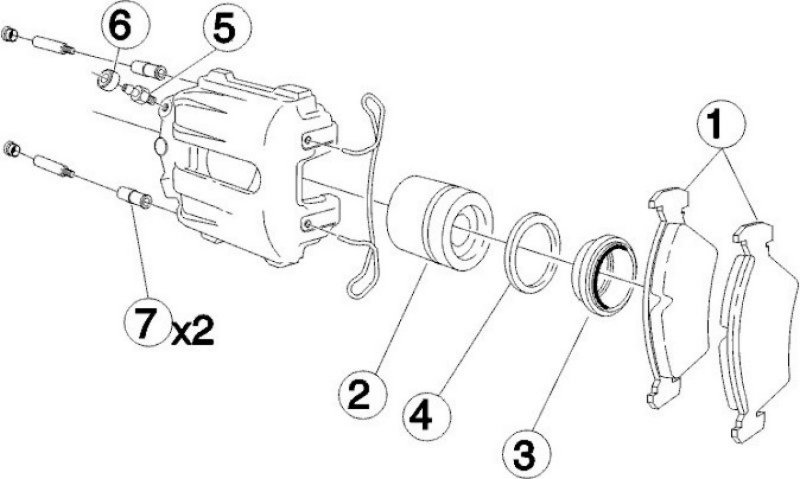

- Remove dirt guard (3).

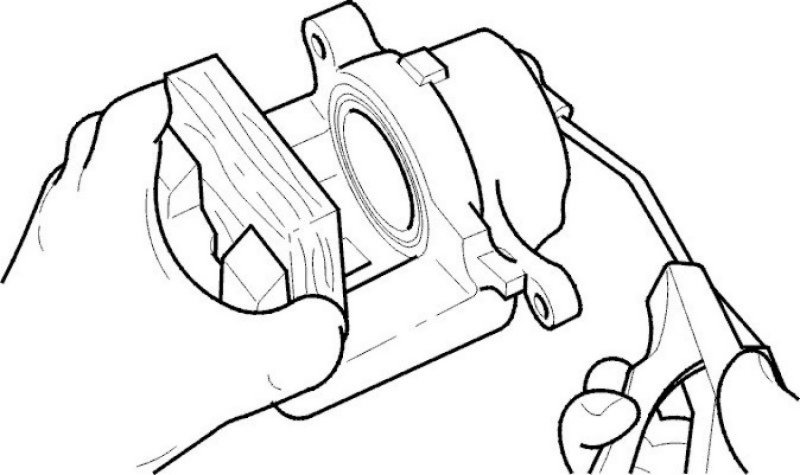

- Remove O-ring (4). Use weatherstrip tool 981 4071 or similar so as not to damage edges of groove.
- Remove rubber bushings (7) and bleed nipple (5).

Cleaning and inspection
- Clean components in T-spirit. Check for wear, damage, cracks and rust. Replace components if necessary.
- Always replace O-ring and dirt guard during overhaul. Take particular care to clean ducts and grooves for O-ring and dirt guard.
- If cylinder is badly marked, scratched etc., replace complete caliper.
- Remove minor rust deposits with fine sandpaper.

Assembling brake caliper




- Blow ducts clean with compressed air.
- Coat cylinder lining, piston (2) and new O-ring (4) with brake fluid.

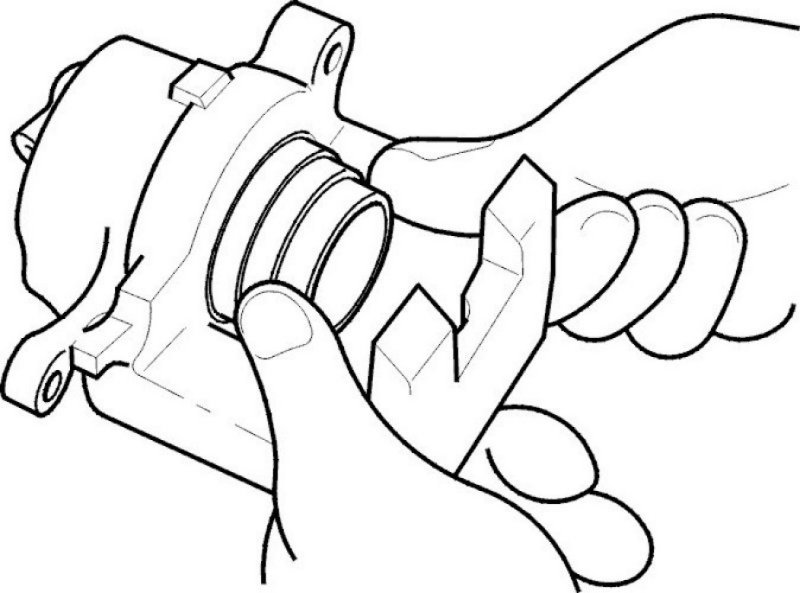

- Install lubricated O-ring (4) in groove in cylinder. Install dirt guard in end of piston (see illustration).

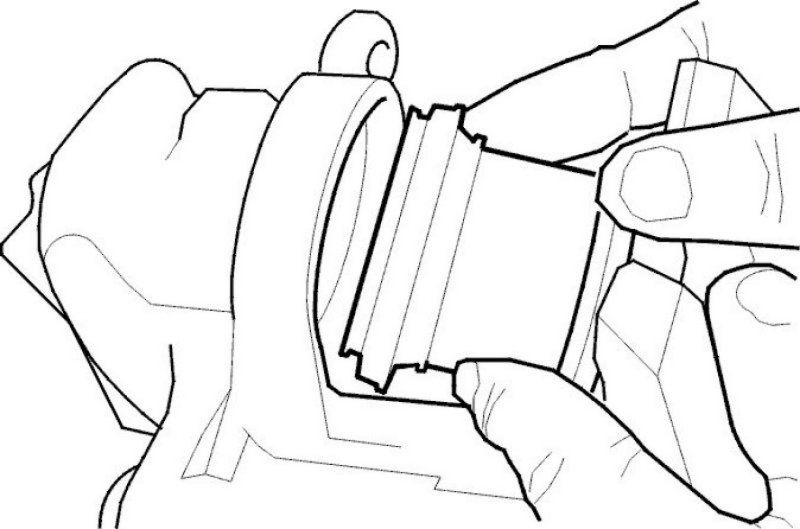

- Install dirt guard in groove inside cylinder and push piston in carefully.
- Check that dirt guard slots into its groove in the piston.
- Check that dirt guard is in position properly.
- Install bleed nipple (5), tighten to 9 Nm (7 ft.lb).

Finishing








- Install rubber bushings in brake caliper.
- Screw brake caliper onto hose by hand.
- Hang brake caliper up on a steel wire on front spring to avoid damaging hose.
- Go to Front brake pads, replacement Brake Pads Front, Replacement
