Signal Description, Control Unit For the Steering Wheel Angle Sensor (SAS)

Signal description, Control unit for the steering wheel angle sensor (SAS)

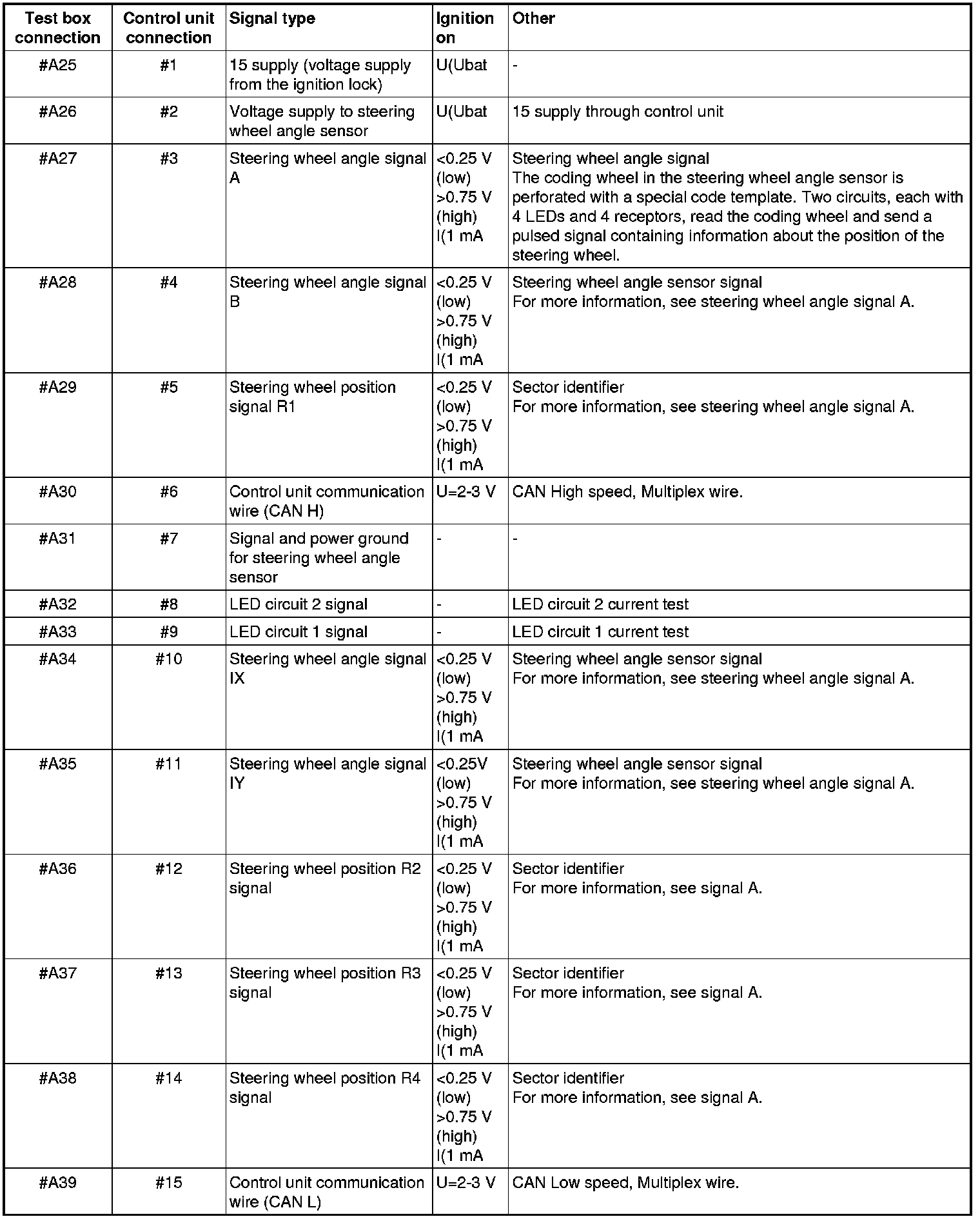

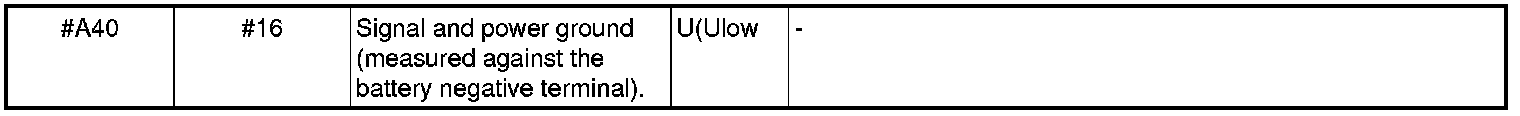

The values in the table represent the values between the connections shown in column 1 and #A40 (ground), unless otherwise stated in brackets.

Note! It is important that the test box is connected and the ground points checked before testing begins.
