Soft Top Functional Sequence Description

1

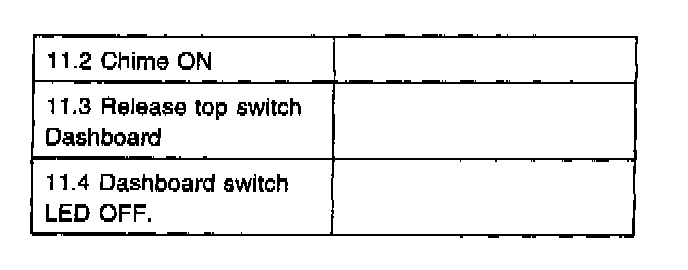

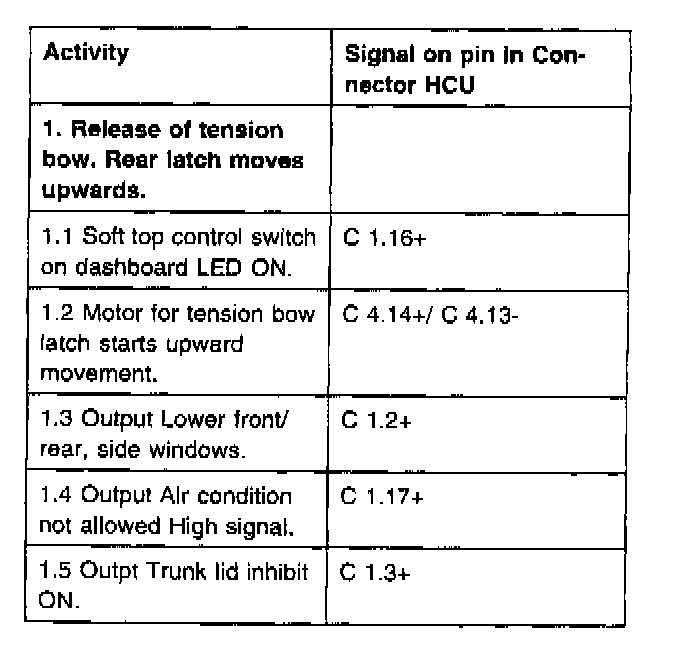

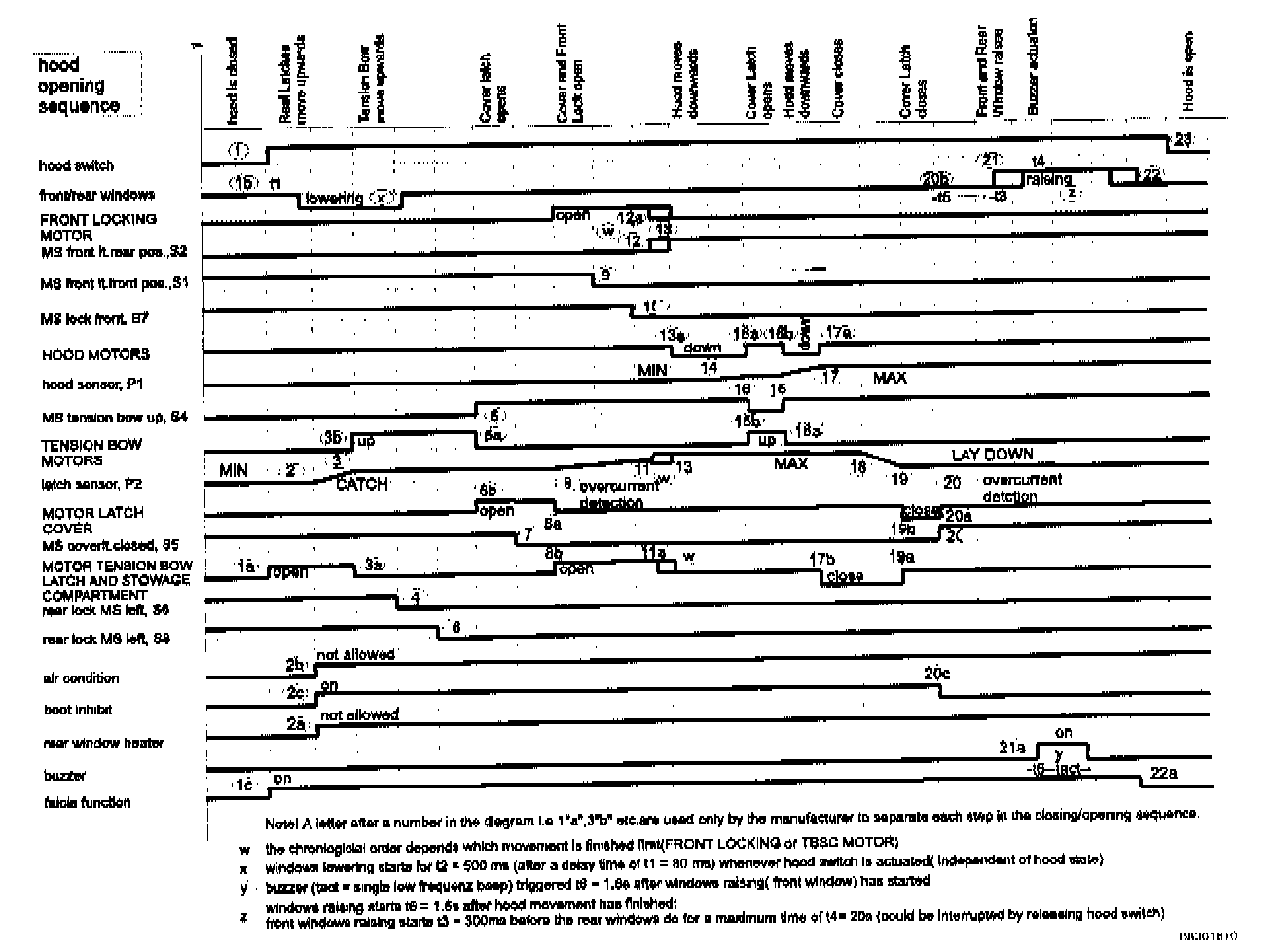

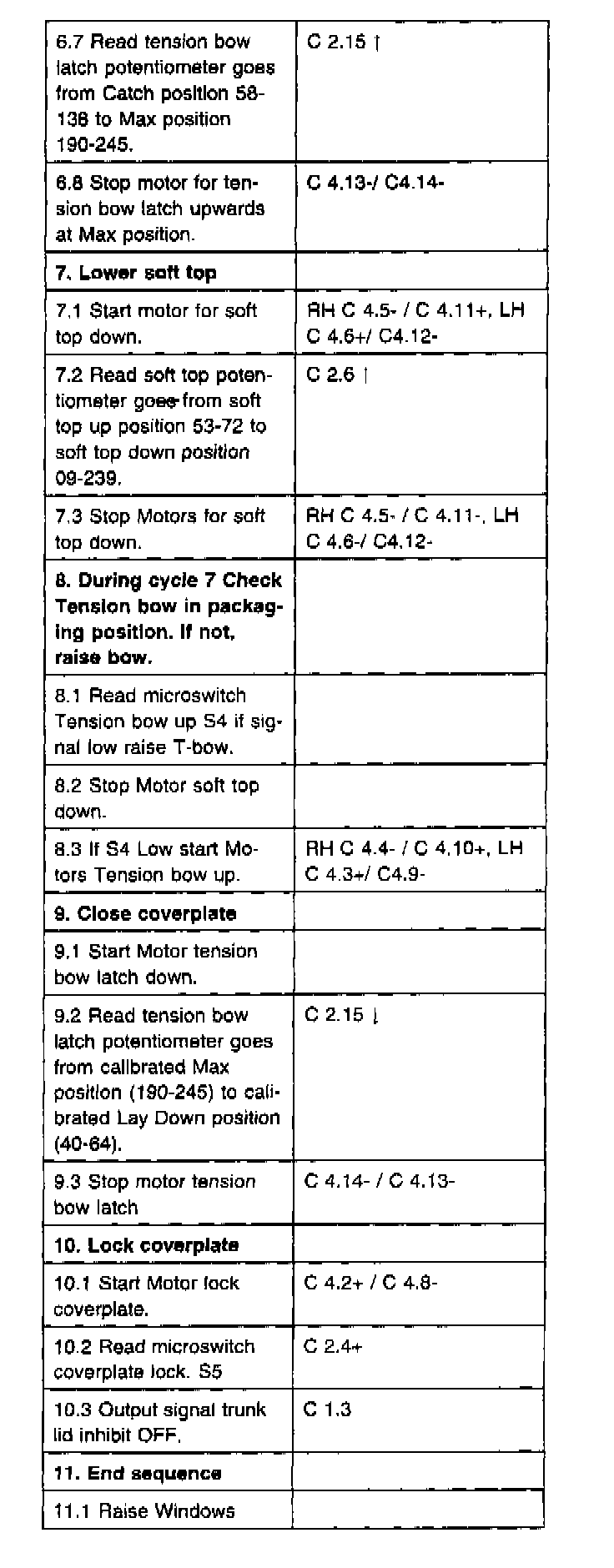

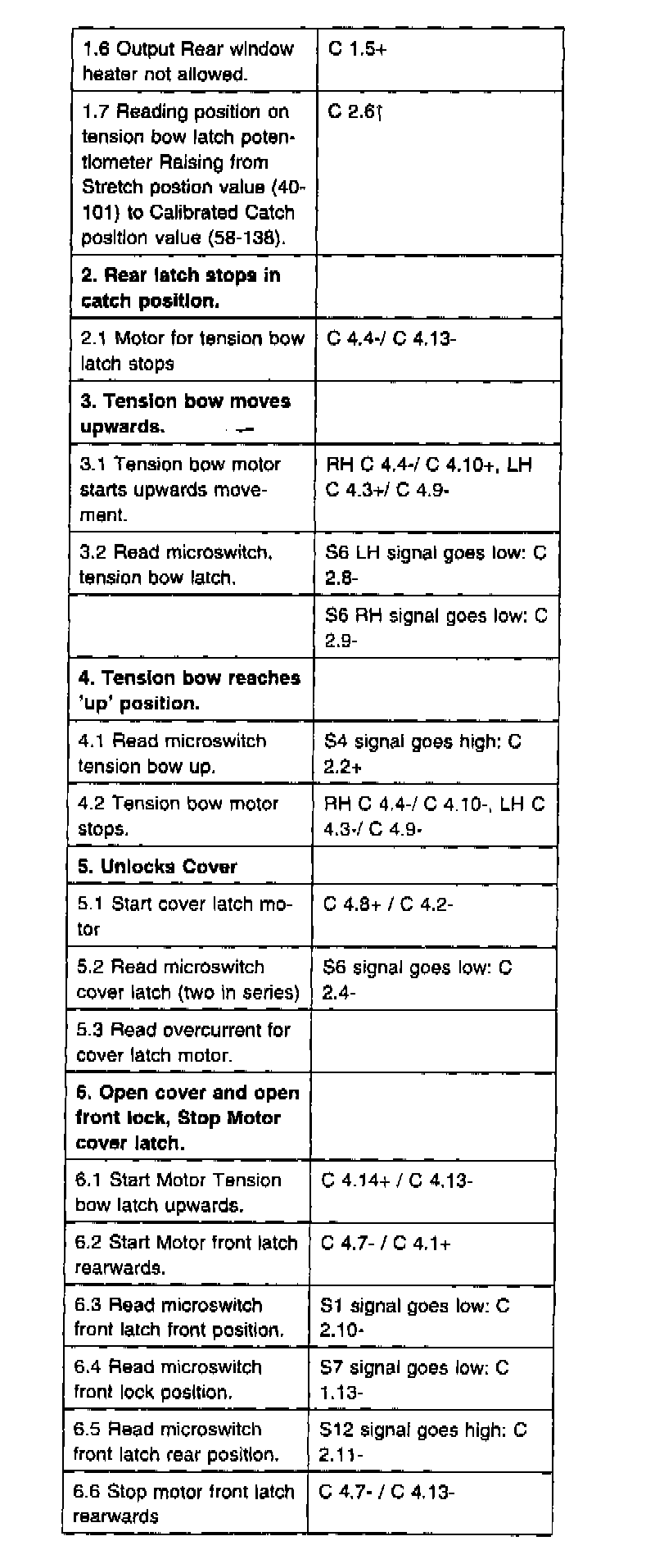

Soft top Opening sequence





















Functional Description

2

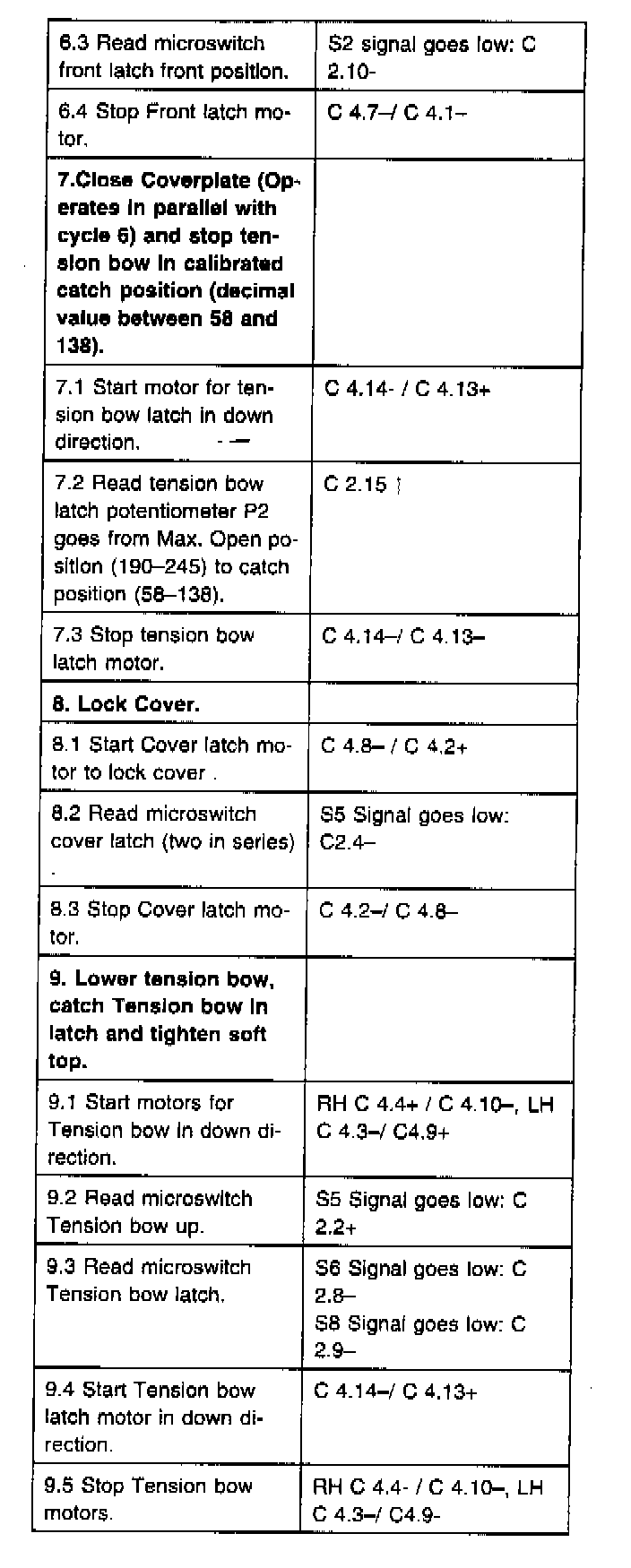

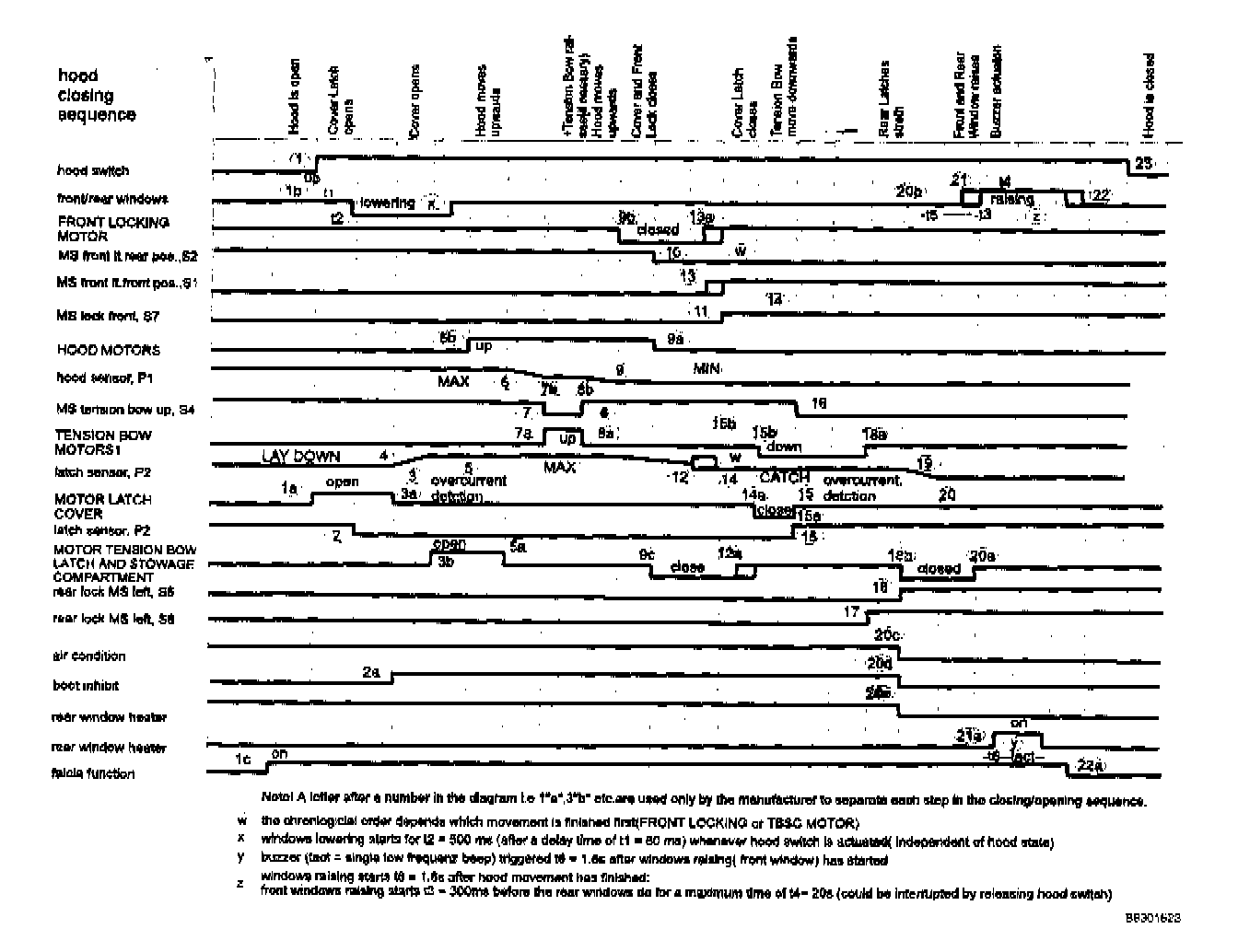

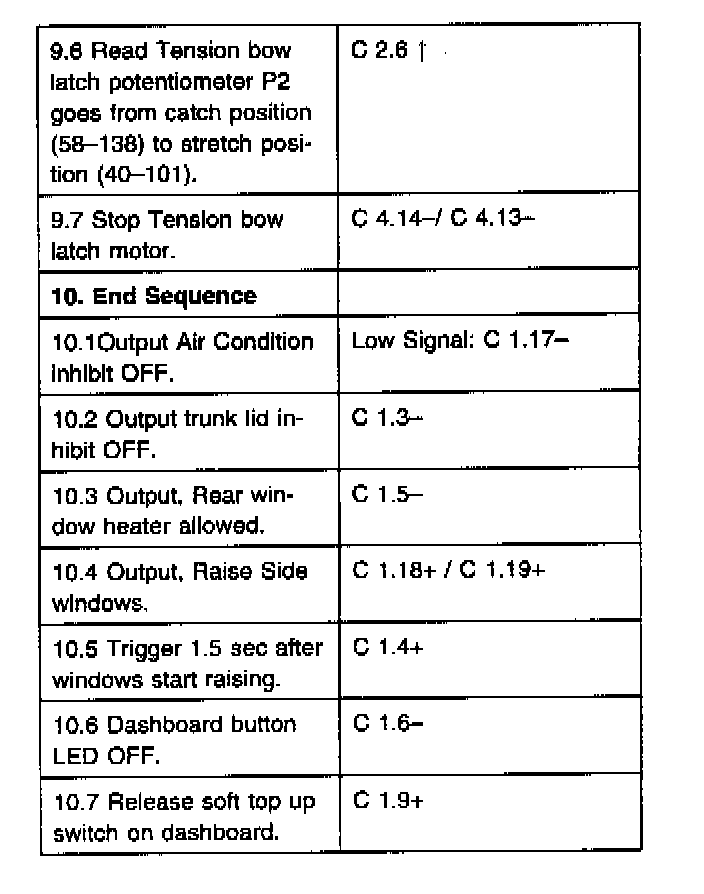

Soft top Closing sequence





















Functional Description
