Lock Motor Cover - Installation of Attachment Clips
Section8
Group
83
No.
0034
Year
99
Month
12
Cars
C70 Conv
1998-2000
Lock motor cover, installation of attachment clips
Background
The cover for the lock motor may come loose.
The installation of attachment clips will improve the mounting of the cover.
Affected vehicles
Model Factory Chassis No.
C70 Conv. J 000000-010058
Soft top number
0000000-010002
Materials
Description Quantity Part No.
Clips 2 8625289
Lock motor cover, loose
Installation of the cover
Removal
1
Removing the cover

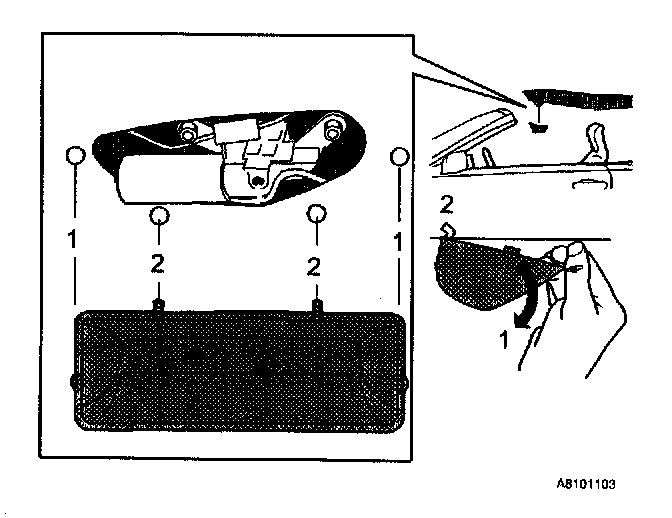

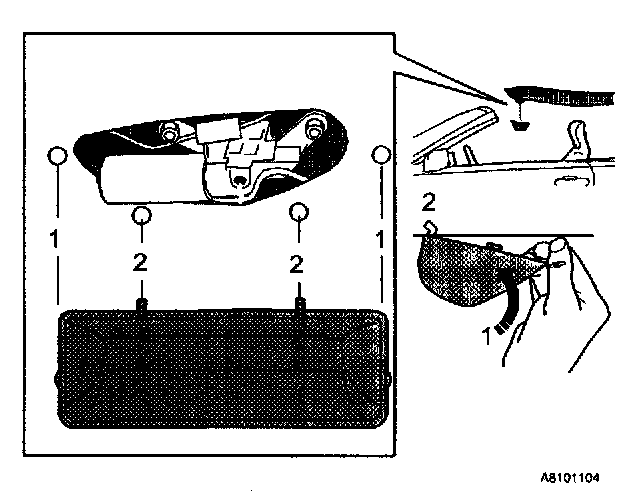

Remove the cover by gently pressing the side and pulling downwards at the same time.
Unhook the cover at the front edge.
Note!
Be careful when unhooking the front edge. Ensure that the hooks (2) do not break.
2
Installing steel clips

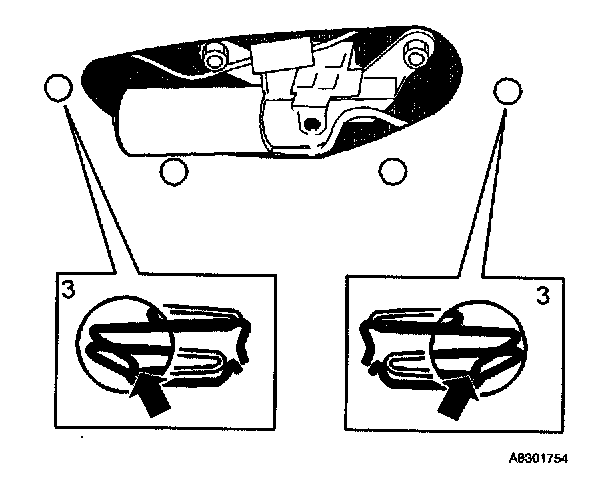

Install the steel clips (3) in the round holes in the roof member as illustrated.
Note!
Make sure that the headlining cloth is not pinched or pulled by the clips.
3
Installing the cover
Hook the cover into place at the front edge (2). Press the locking tabs (1) into place.
Caution!
Ensure that the locking tabs (1) are positioned between the roof member and the hook of the clip. The clips hook will press on the backside of the locking tab insuring a secure attachment to the roof member. (the hook on the steel clip is marked (3) in the illustration in step 2).
WARRANTY STATEMENT: Claims may be submitted under the New Car Warranty when there is a documented customer complaint, using claim type 01.
Operation No. Labor description Time allowance
83934-2 Lock motor cover, installation of attachment clips 0.1 hr
