Noise Reduction - Steering/Soundproofing Panel

Noise reduction - steering/soundproofing panel

Noise from soundproofing panel at center console





Driver's side:
Install tape, P/N 3537456-0, on soundproofing panel. The tape must not be visible.





Passenger side:
Install tape, P/N 3537456-0, on soundproofing panel. The tape must not be visible.

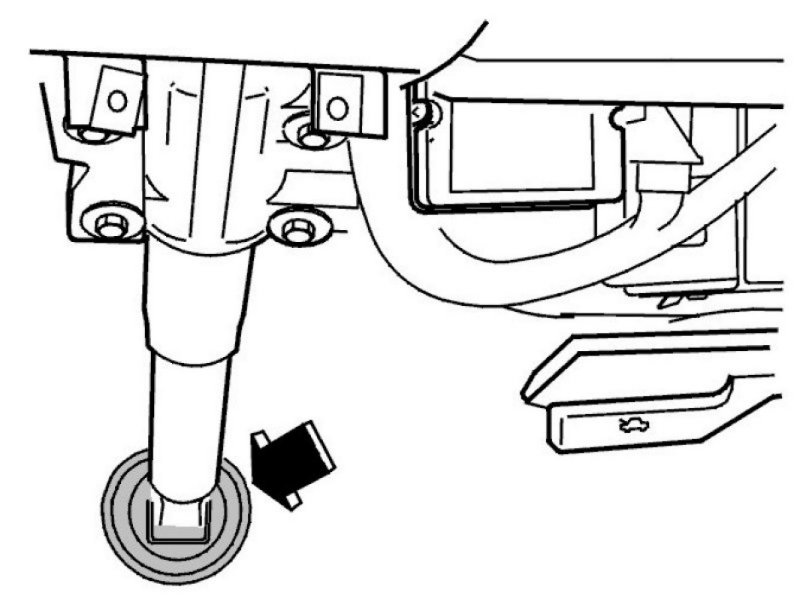

Noise from steering shaft - firewall grommet




Apply grease, P/N 1161417-9, between rubber bushing and steering shaft in firewall.

Noise from springs for signal




Apply anti-squeak varnish, P/N 1161412-0, on springs and screws for signal plate.
