Noise Reduction - Headlining

Noise reduction - headlining

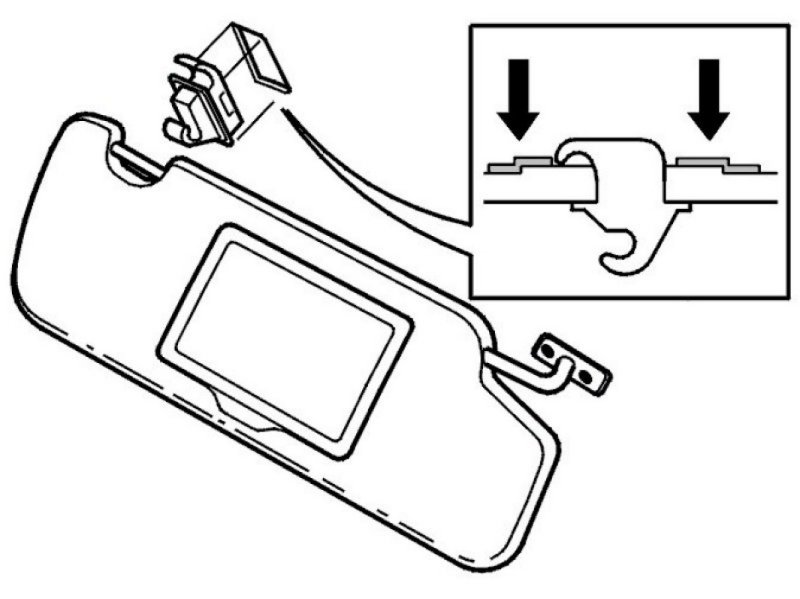

Noise from headlining at sun visor holder (applies to S70 only)




Remove interior lighting and sun visor holder.
Install tape, P/N 3537385-1, on headlining as illustrated.

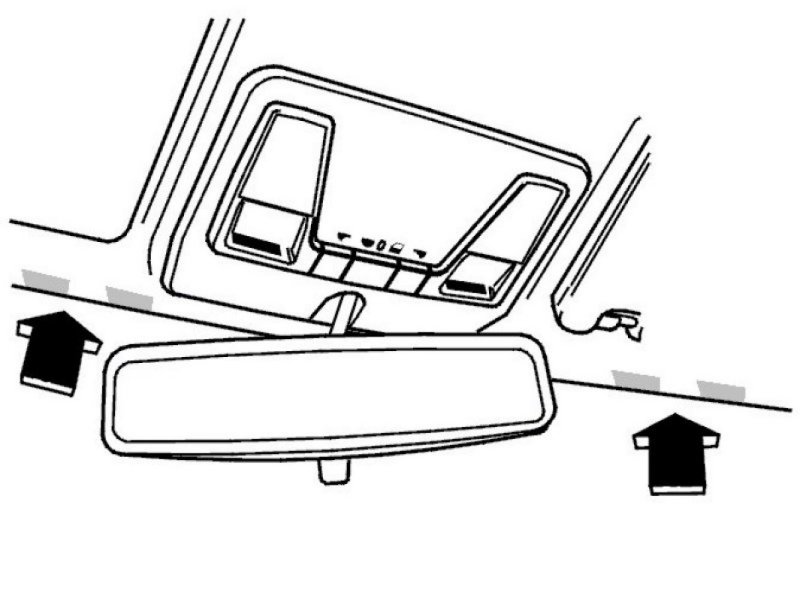

Noise from headlining at windshield (applies to S70 only)




Install tape, P/N 679904-3, on reverse of headlining in a suitable place to create space between windshield and headlining. Do not tape the whole length.

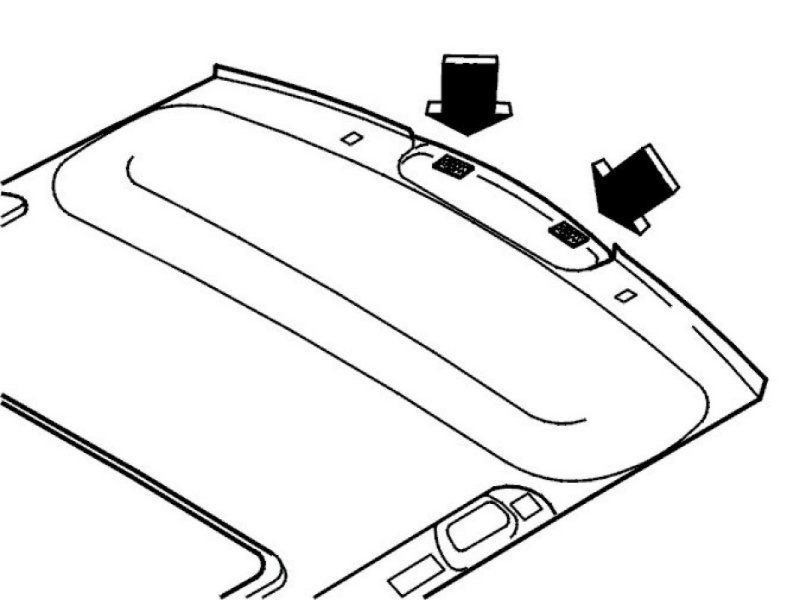

Noise from upholstery - stop (brake) lamp (applies to S70 only)




Remove rear clip retaining headlining.
Hold headlining down and install foam pieces, P/N 679904-3, on headlining as illustrated to create space to stop (brake) lamp.
