Noise Reduction - Dashboard






Noise reduction - dashboard

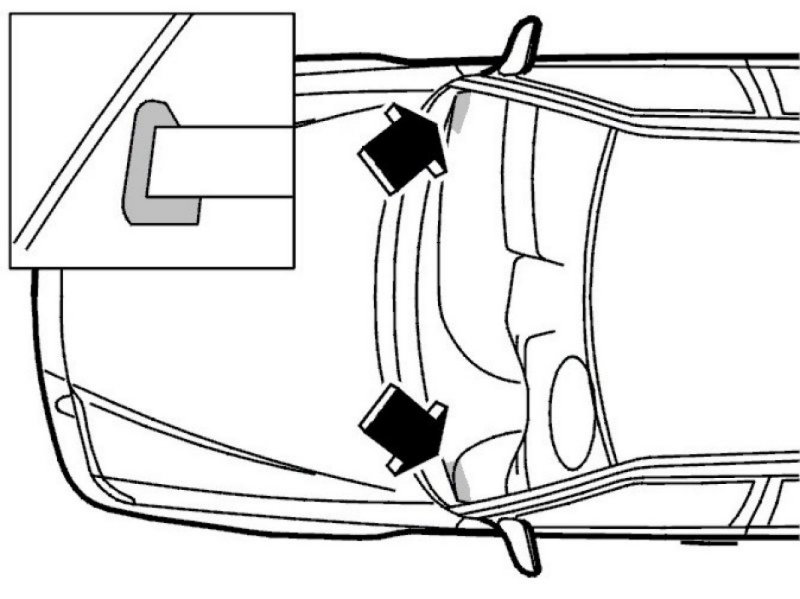

Noise from dashboard - windshield at outer corner




Check that no tape has got up between dashboard and windshield.
Remove any visible loose tape between the dashboard and windshield.

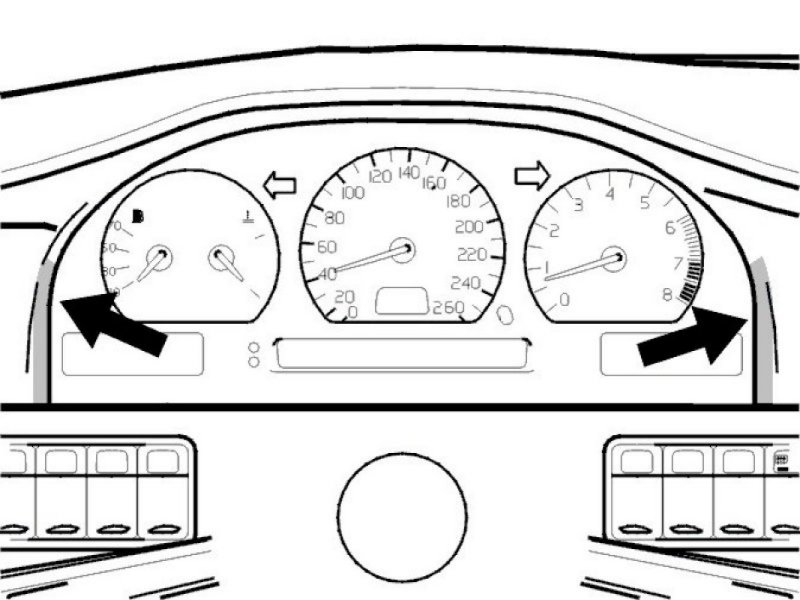

Noise from combined instrument panel - dashboard




Install tape, P/N 3537385- 1, between the cover over the dashboard and the combined instrument panel.
Secure the tape on the cover.
