Noise Reduction - Fender Liner-Control Arm

Reduction of noise - fender liner-control arm

Noise from the fender liner

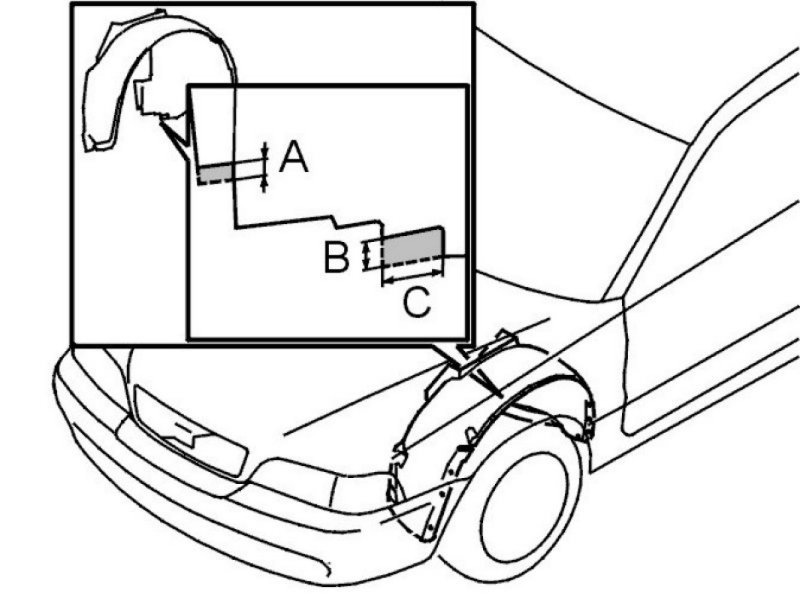

If noise occurs between the fender liner and the control arm, material must be removed from the fender liner as illustrated.
A = 5 mm.
B = 17 mm.
C = 40 mm.
