Noise Reduction - Center Console

Noise reduction - center console

Noise from front cover in center console




Install tape, P/N 3537385- 1, on the sides of the cover (on the ribs).

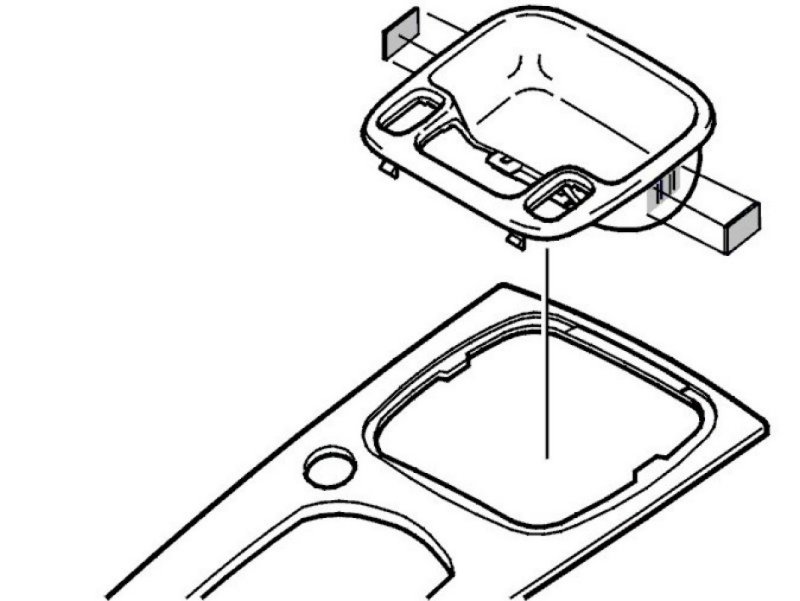

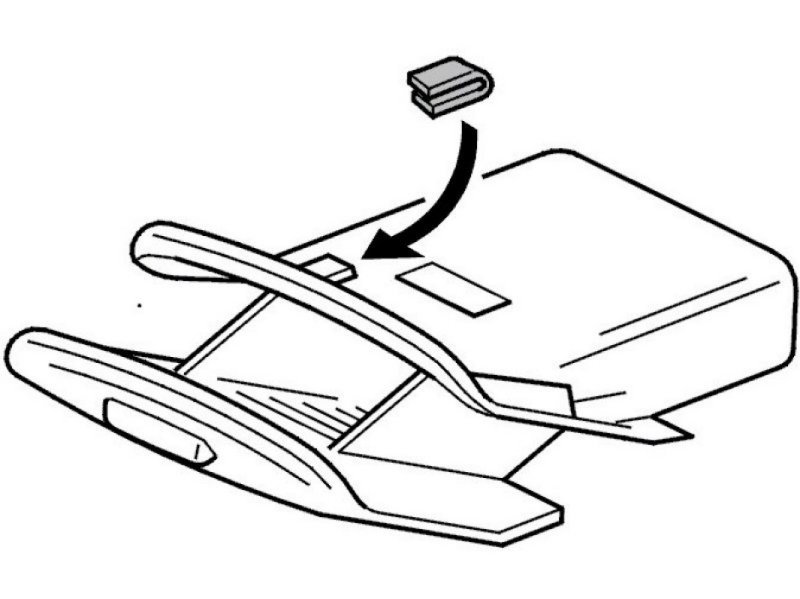

Noise from ashtray




Install tape, P/N 3537385- 1 around the upper mounting on the ashtray holder.

Noise from cover panel-center console




Install tape, P/N 3537456-0, on the front section of the panel.

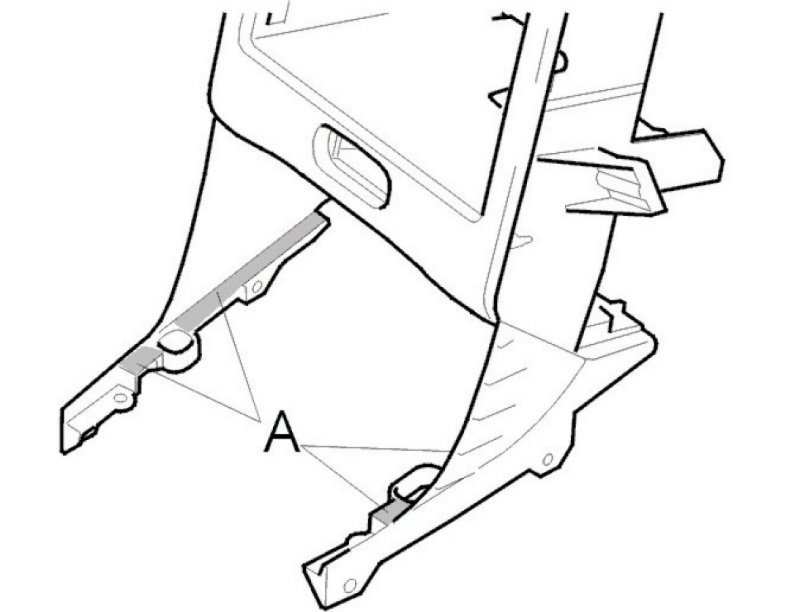

Noise from panel-dashboard




Check that there is tape on the side of the dashboard mating surface to the cover.
Tape missing, install a piece, P/N 3537456-0, in front of the clip cut out and a bit behind (on both sides).

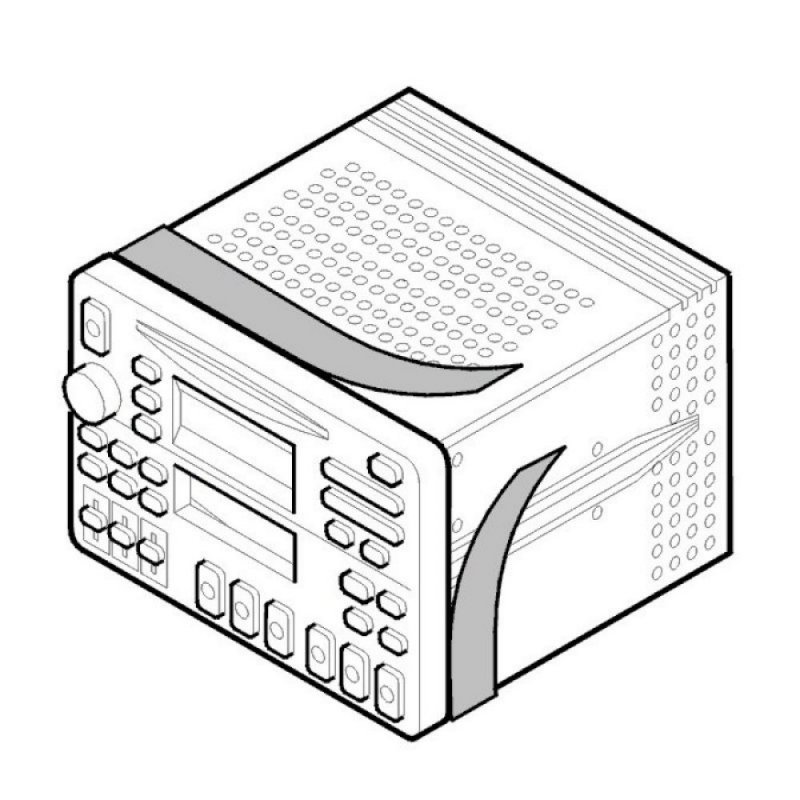

Noise from radio - radio tray




Install tape, P/N 1161410- 4 around the radio (as illustrated).

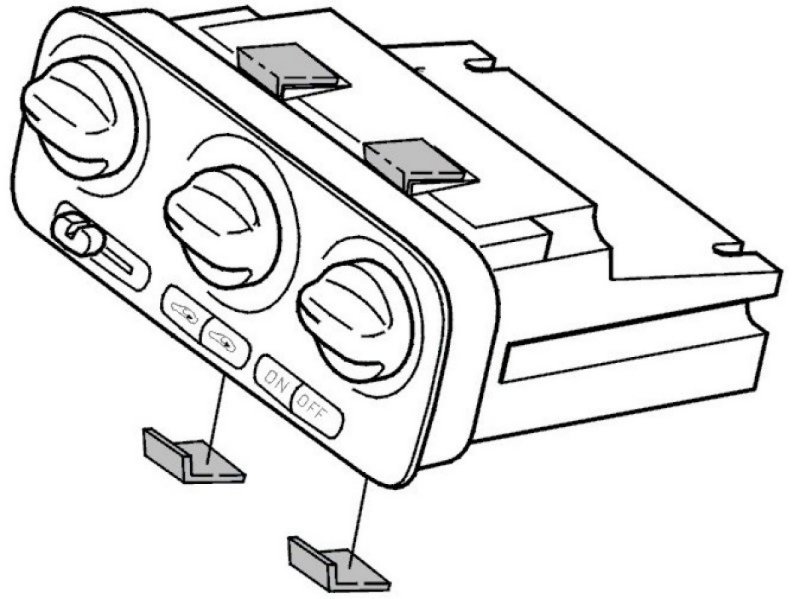

Noise from ECC control module clip - holder




Install tape, P/N 1161410- 4, on the ECC control module clip (upper and lower sides).
