Noise Reduction - Bodywork

Noise reduction - bodywork

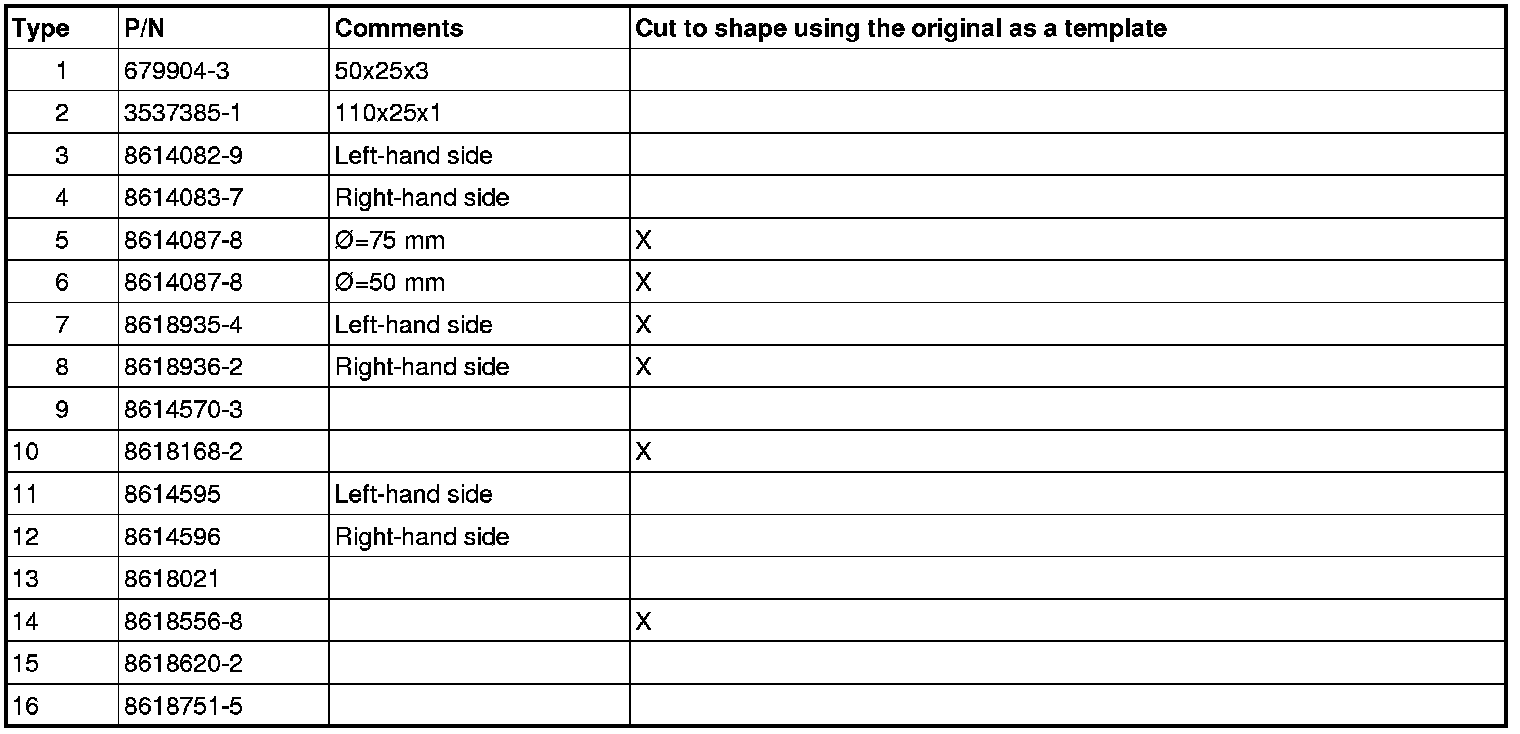

List of insulation and seals

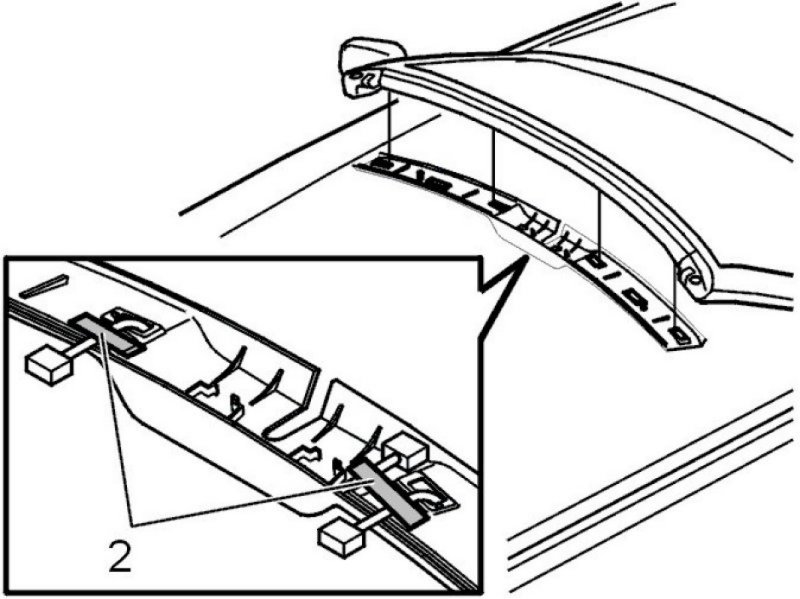

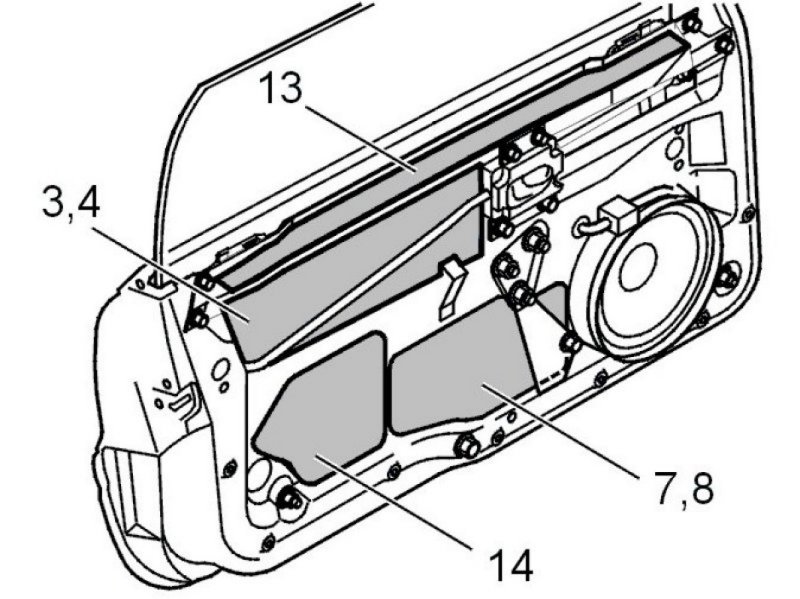

Location of insulation and seals
Seals should be positioned as follows to prevent noise. The seals are marked in gray.
Use the type indicated in the illustration.
Only methods for corrective action against noise are described.

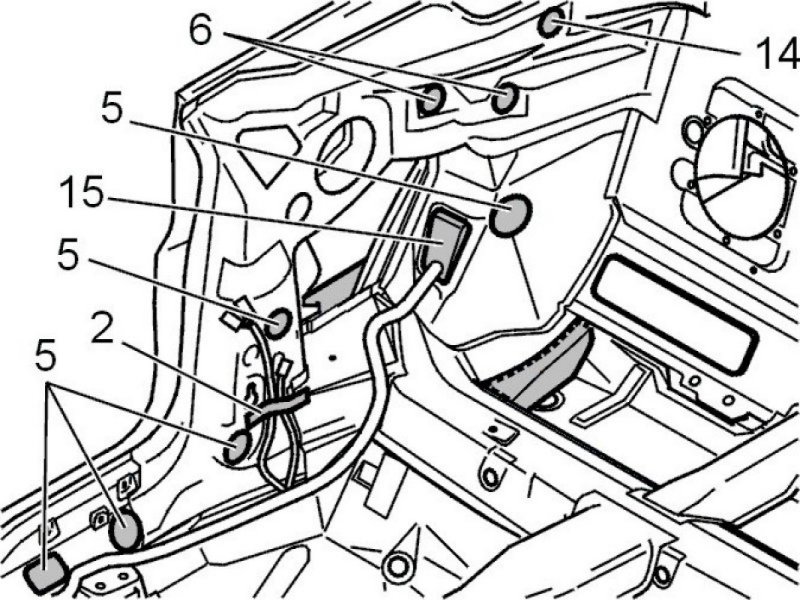

Location on the A-post.




Soundproofing panel, glove compartment.












Floor / seat mounting.
