Connecting the Break-Out Box

Connecting the break-out box
981 3190 Replaced by 9511428 981 3190 Replaced by 951 1428 981 3194 Replaced by 9511495 981 3194 Replaced by 951 1495




Information

Connecting up the Test box





Is the test box connected to the control module?

Yes - CONNECTED

No - NOT CONNECTED

------------------------

NOT CONNECTED - Testing ground points

CONNECTED - FAULT FOUND

-------------------------------------------------

Testing ground points




- Ignition OFF.
- Connect the break-out box 981 3190 Replaced by 9511428 981 3190 Replaced by 951 1428 using adapter 981 3194 Replaced by 9511495 981 3194 Replaced by 951 1495 on the 16-pin green connector (terminals 31-46).
Connect an ohmmeter between battery negative terminal and:
- terminal 36 on break-out box
- terminal 37 on break-out box









In both cases the ohmmeter should read 0 ohms.

OK - Calibrating ground terminals, continued

Not OK - Checking for an open-circuit

-------------------------------------------------

Calibrating ground terminals, continued




- Ignition OFF.

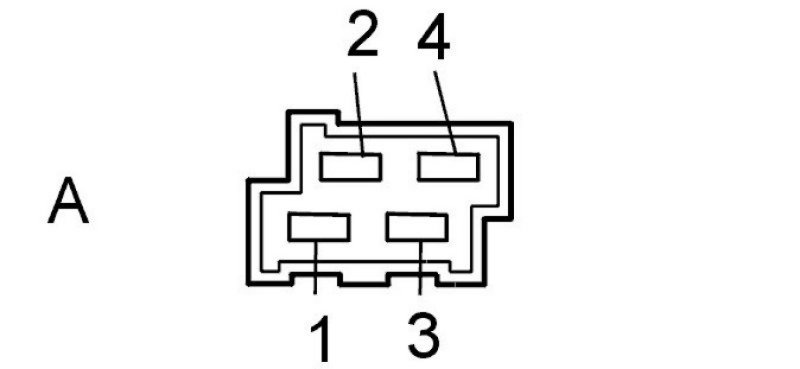

Measure with an ohmmeter between the battery negative terminal and position A:3 on the 4-pin connector.









The ohmmeter should read approx. 0 ohms.

OK - FAULT FOUND

Not OK - Checking for an open-circuit, contact resistance and oxidation

-------------------------------------------------

Checking for an open-circuit
Check lead between controller and control module connection D:6 or D:7 for break as per Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.

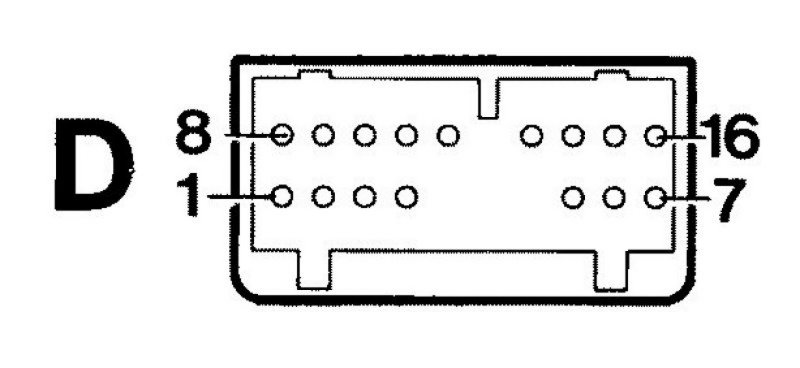

Signal Table for the break-out box connected to the 16-pin connector D, see Connector D Connector D.









Press "Continue" when the fault has been remedied.

Continue - FAULT FOUND

-------------------------------------------------

Checking for an open-circuit, contact resistance and oxidation
Check lead between control module connection 31 and ground point for break as per Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault and contact resistance and oxidation in accordance with Checking wiring and terminals. Intermittent faults Checking Wiring and Terminals. Intermittent Faults.
Signal Table for the break-out box connected to the 16-pin connector D, see Connector D Connector D.





Press "Continue" when the fault has been remedied.

Continue - FAULT FOUND

-------------------------------------------------
