Fault-Tracing Information

Fault-tracing information

Condition
No diagnostic trouble codes (DTCs)
The fault is permanent.
No faults detected on the control panel.

Possible source




- Contact resistance in terminals.

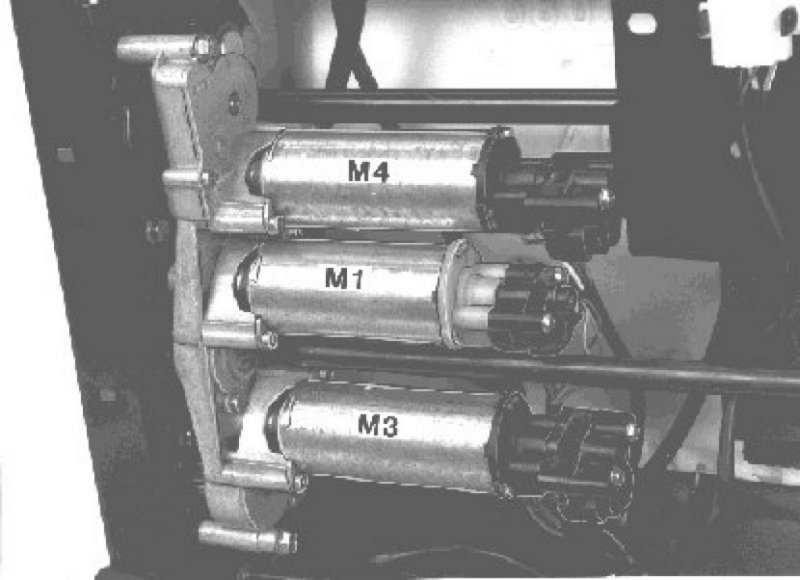

- Open-circuit on wiring to motors 1, 3, or 4.
- Defective motor 1, 3 or 4.
- Defective drive gear.
- Defective control module.

Fault symptom[s]
- Seat will not move forward/backward.
- Seat will not adjust for height.
