Fault-Tracing Information

Fault-tracing information

Condition
No diagnostic trouble codes (DTCs)
The fault is permanent.
No faults detected on the control panel.

Possible source

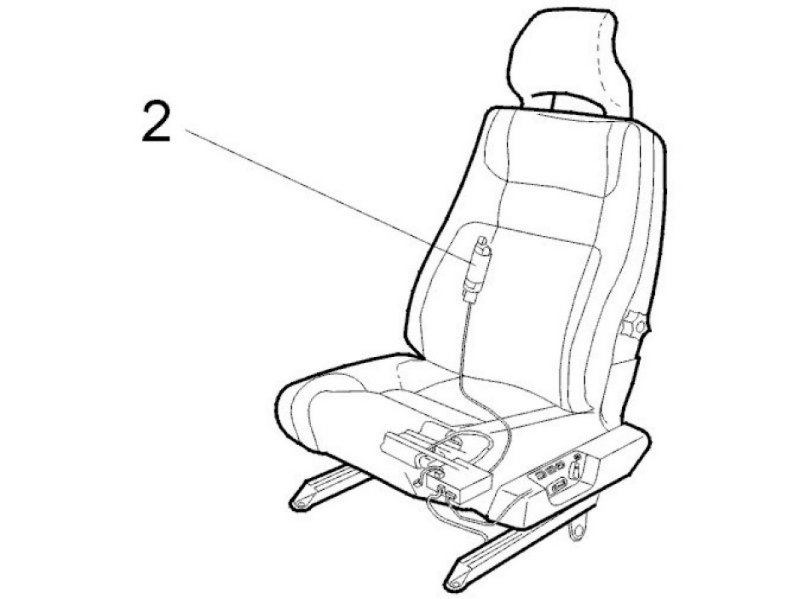

Location Of Components:

- Contact resistance in terminals.
- Open-circuit on wiring to motor 2.
- Defective motor 2.
- Defective drive gear.
- Defective control module.

Fault symptom[s]
- No backrest angle adjustment.
