The Potentiometer and Shaft For the Front-Rear Adjustment Motor

The potentiometer and shaft for the front-rear adjustment motor

Removing the potentiometer
Set the seat height adjustment to its uppermost position.
Remove the seat from the car according to Lifting the power seat in and out Lifting the Power Seat In and Out.

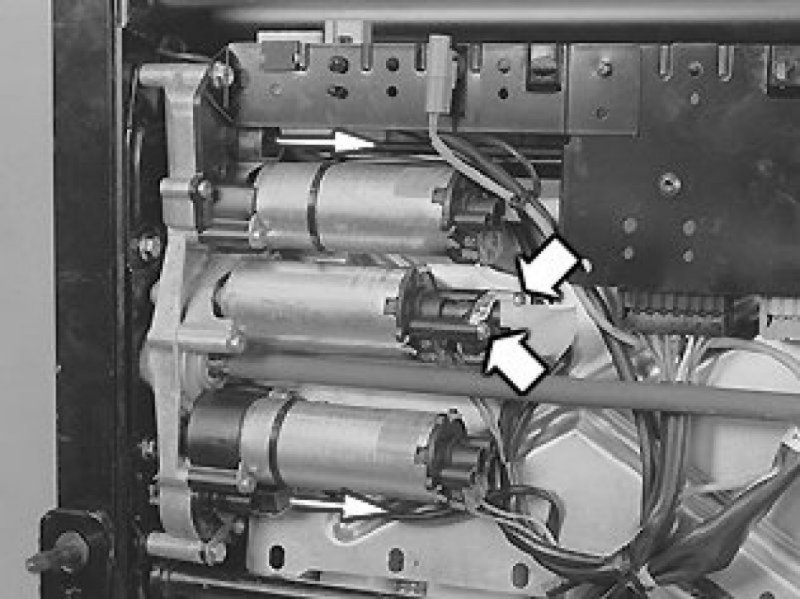

Disconnect the connectors and wiring.




Remove the two screws.

Install:
In reverse order.

Disconnecting the shaft
To remove the potentiometer, see Removing the potentiometer




Pull out the shaft.

Install:
In reverse order.
