Replacing Cable In Backrest

Replacing cable in backrest

Preparations




Make a note of radio code if anti-theft coded radio is installed.

Remove:
- battery negative lead
- seat from the car.
- backrest upholstery.
- protective pad.
- tie strap from padding.

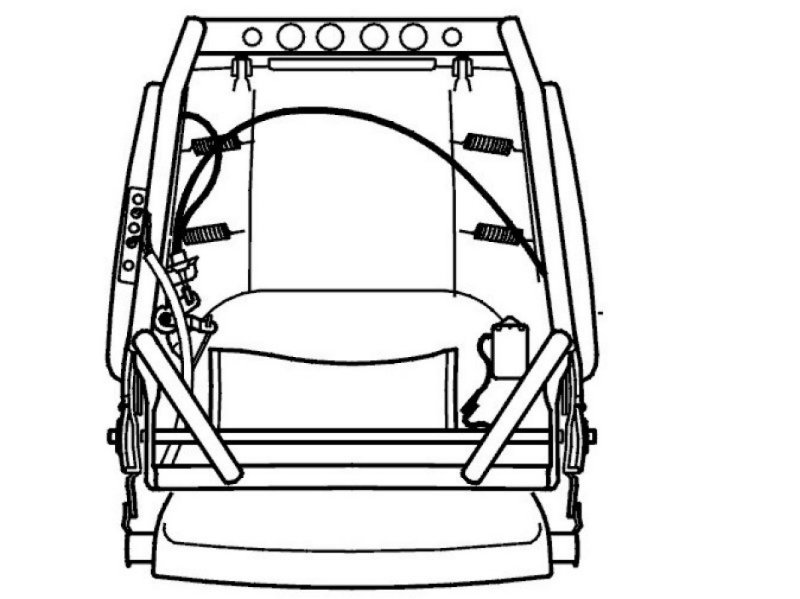

Removing cable

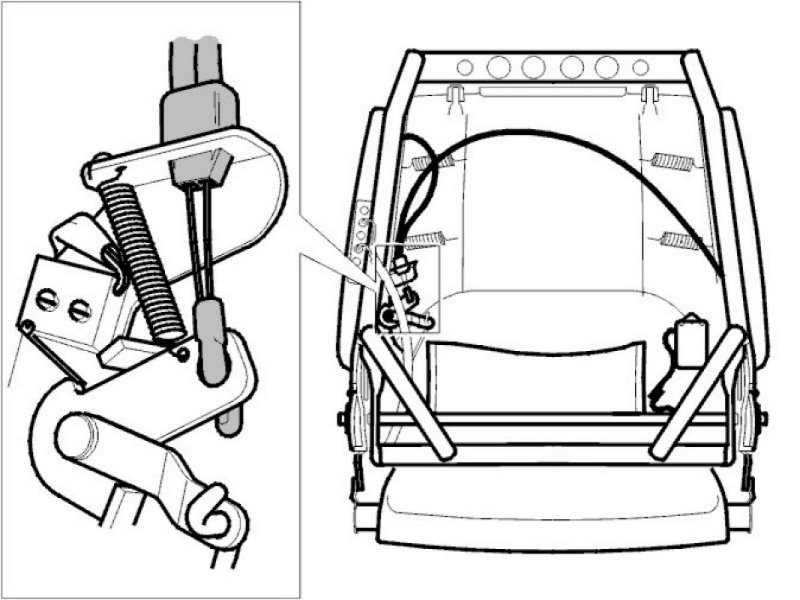

Press in the catch securing the cable in the folding mechanism.

Caution! Check the routing of the cable in the backrest before removal in order to reinstall in the same way.

Disconnect the cable from the folding mechanism.
Unhook the cable ends from seat and replace the cable.
Assemble in reverse order.
