Potentiometer For the Front Height Adjustment Motor

Potentiometer for the front height adjustment motor

Removing the potentiometer
Set the seat height adjustment to its uppermost position.
Remove the seat from the car according to Lifting the power seat in and out Lifting the Power Seat In and Out.




Unclip the cover.

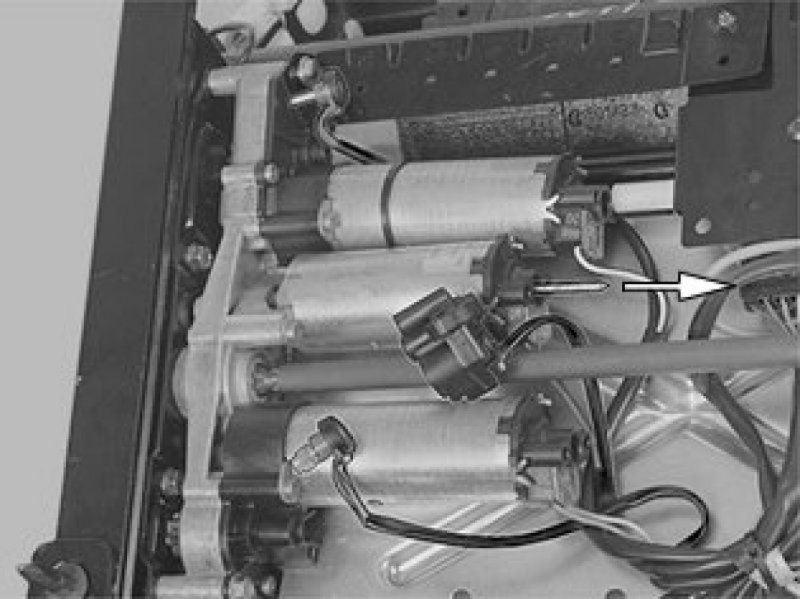

Pull out the potentiometer.
Disconnect the connectors and wiring.

Install:
In reverse order.





Note! If the potentiometer gas a fixed gear either reuse the gear or order a new on separately.

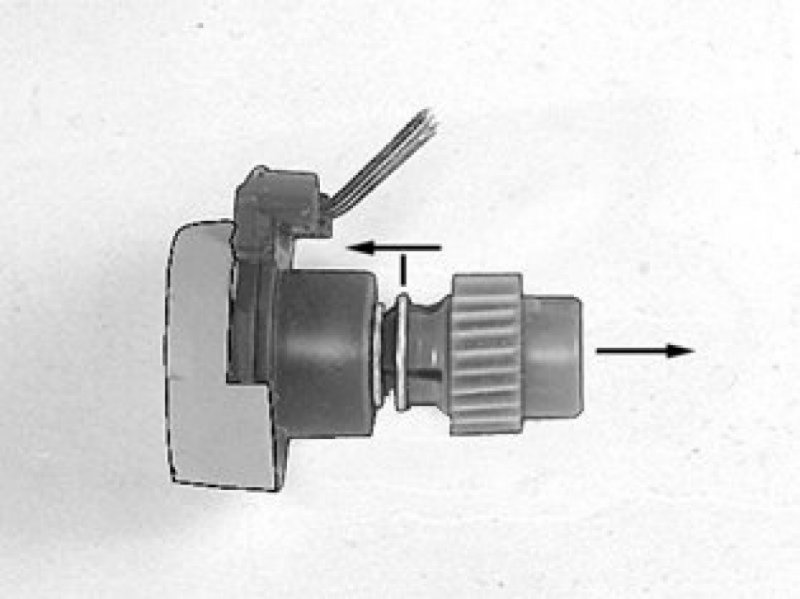

Remove the snap ring from the gear on the potentiometer.
