Making Power Supply Wiring

Making power supply wiring

Making wiring

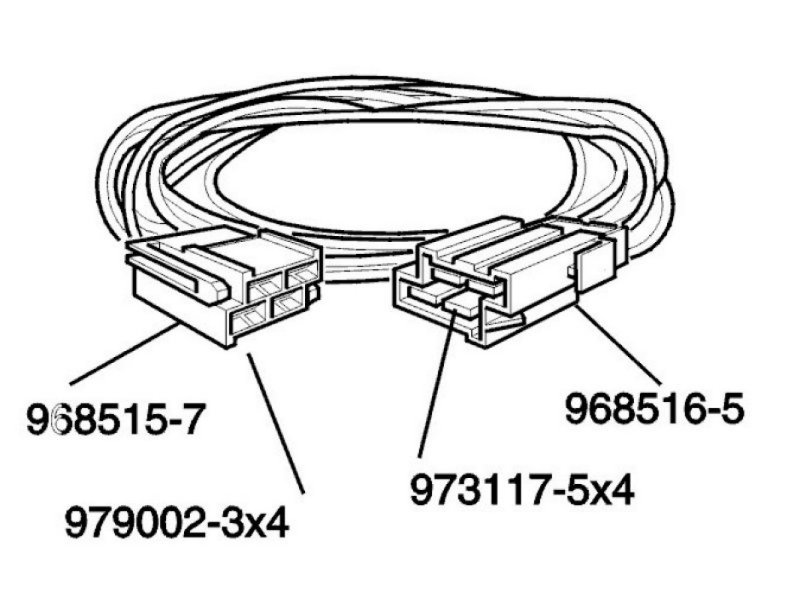

- Take out 2 connectors (P/N 968515-7 and 968516-5 ).
- Cut four sections of cable, at least 1.5 mm2. These should not exceed 3 meters in length. This is because the amount by which the voltage will fall increases with the length of the cable. This may result in too low voltage at the seat.
- Secure cable terminals, P/N 979002-3 and 973117-5 , on the cables. Press them into the connectors as illustrated.

Connecting wiring
- Connect the wiring between the 4-pin connector at the outer front mounting for the seat and to the 4-pin connector at the front of the outer seat rail.
