Control Panel

Control panel

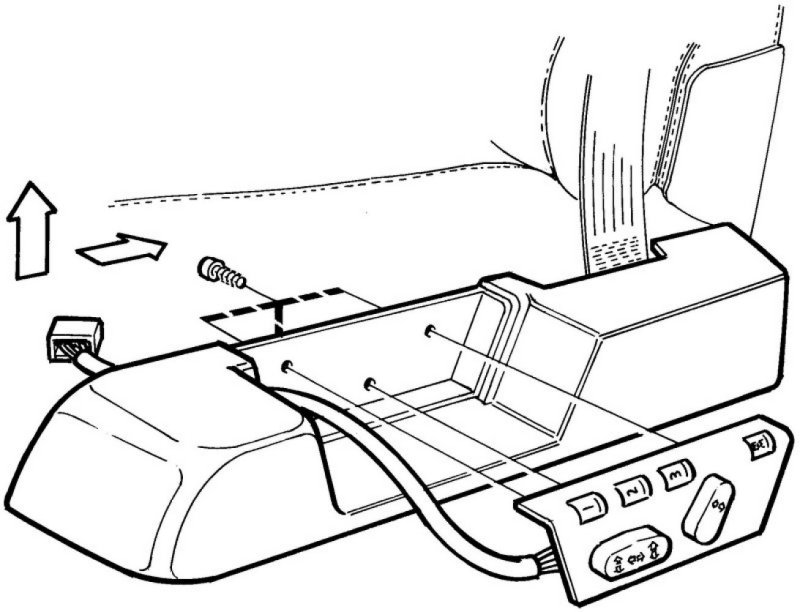

Removing control panel





Remove:
- side panel according to Side panel Side Panel.

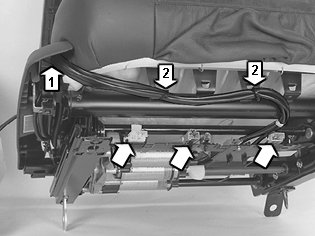

- connector from control module (under the front edge of the seat cushion).
- tie straps (2).




- the three screws on the rear of the side compartment.

Install:
In reverse order.
