Home >> Volvo >> 2000 >> C70 Convertible L5-2.3L Turbo VIN 53 B5234T3 >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Removal and Replacement >> Mechanical Front Seats >> Side Panel

Side Panel






Side panel

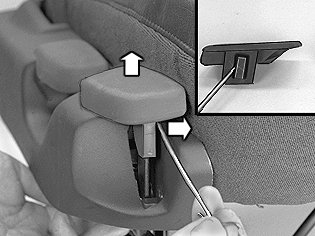

Control handle




Bend out the catch on the back of the handle.

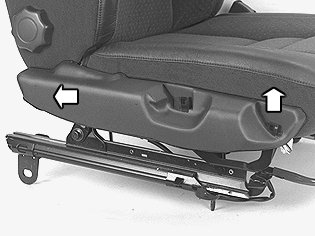

Seat panel




Lift up.
Remove one screw from the rear.
